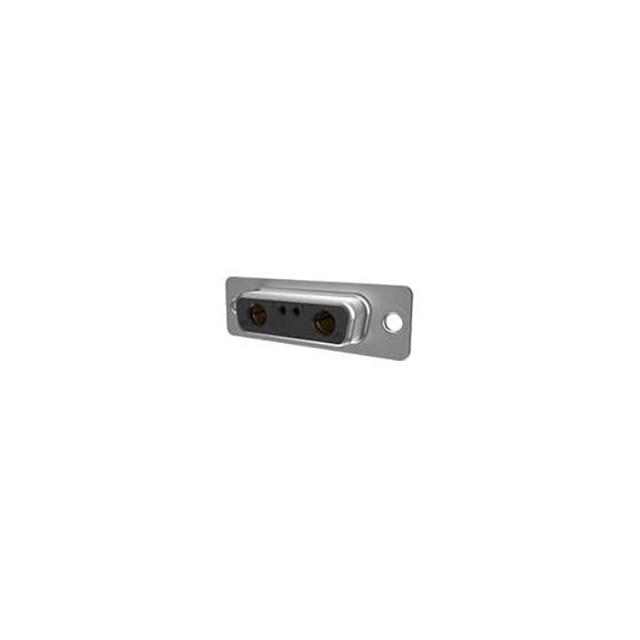

Same model may have multiple batches, images only for reference.
3009W4SCT56N40X Amphenol CONEC – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

3009W4SCT56N40X

Part No 3009W4SCT56N40X
Catalog D-Sub, D-Shaped Connectors - Assemblies
Description CONN D-SUB RCPT 9POS R/A SOLDER
Sample
Rohs State rohs
Need Help

Products specifications Report Issue?

Connector Style D-Sub, Combo
Connector Type Receptacle, Female Sockets
Number of Positions 9 (5 + 4 Power)
Number of Rows 2
Mounting Type Board Edge, Through Hole, Right Angle
Shell Size, Connector Layout 3 (DB, B) - 9W4
Contact Type Signal and Power
Flange Feature Housing/Shell (4-40)
Termination Solder
Shell Material, Finish Steel, Tin Plated
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Ingress Protection IP20
Material Flammability Rating UL94 V-0
Current Rating (Amps) 5A, 20A
Backset Spacing 0.287" (7.28mm)
Features Board Lock
Package Tray
Supply and Demand Status Shortage
Win Source Part Number 1623331-3009W4SCT56N40X
Ultra Librarian 3D Model Ultra Librarian 3009W4SCT56N40X CAD Model
