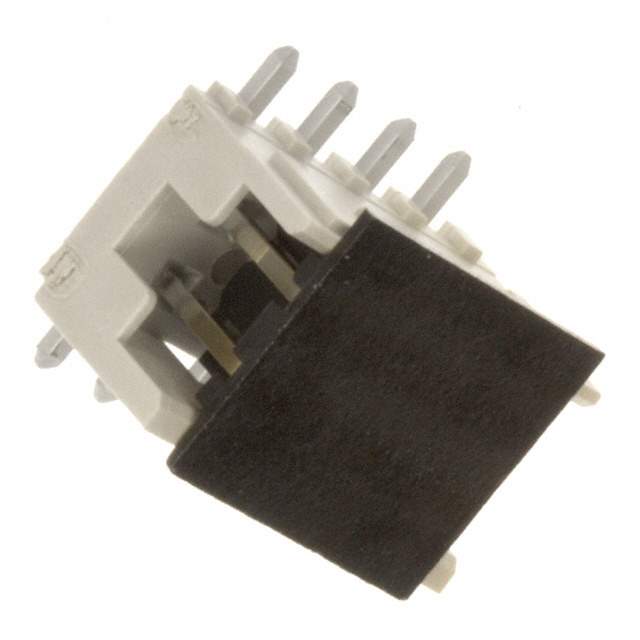

98424-G52-08ALF Real Image
Same model may have multiple batches, images only for reference.

98424-G52-08ALF

Part No 98424-G52-08ALF
Manufacturer Amphenol FCI
Catalog Rectangular Connectors
Description CONN HEADER SMD 8POS 2MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Amphenol ICC (FCI)
Packaging Reel
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Number of Positions 8
Number of Rows 2
Row Spacing - Mating 0.079" (2.00mm)
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Shrouded - 4 Wall
Mounting Style SMD
Termination Solder
Fastening Type Latch Holder
Contact Length - Mating 0.157" (4.00mm)
Insulation Height 0.244" (6.20mm)
Contact Shape Square
Contact Finish - Mating Gold, GXT
Contact Finish Thickness - Mating 30.0μin (0.76μm)
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Thermoplastic
Features Keying Slot, Pick and Place
Material Flammability Rating UL94 V-0
Insulation Color Cream
Current Rating (Amps) 2A (AC/DC)
Voltage Rating 200V (AC/DC)
Contact Finish Thickness - Post 78.7μin (2.00μm)
Manufacturer Pack Quantity 750
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 809246-98424-G52-08ALF
Ultra Librarian 3D Model Ultra Librarian 98424-G52-08ALF CAD Model

Description

The Amphenol ICC (FCI) 809246-98424-G52-08ALF is a male pin header connector with a shrouded 4 wall and a pitch of 0.079" (2.00mm).

  • Voltage Rating: 200V (AC/DC)
  • Application: Board to Board, Cable
  • Contact Finish: Gold, GXT
  • Contact Finish Thickness (Mating): 30.0μin (0.76μm)
  • Contact Finish Thickness (Post): 78.7μin (2.00μm)
  • Current Rating: 2A (AC/DC)
  • Packaging: Reel
