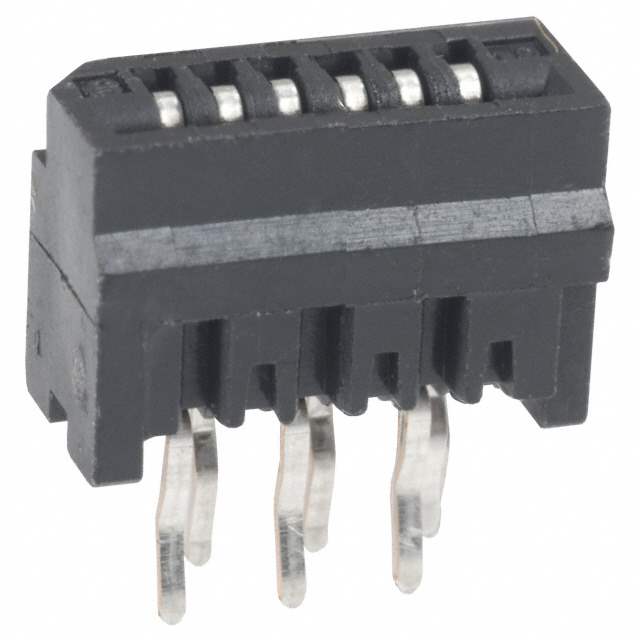

HLW6S-2C7LF Real Image
Same model may have multiple batches, images only for reference.

HLW6S-2C7LF

Part No HLW6S-2C7LF
Manufacturer Amphenol FCI
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FFC FPC VERT 6POS 1MM PCB
Datasheet
HLW6S-2C7LF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Amphenol FCI
Packaging Tray
Status Active
Flat Flex Type FFC, FPC
Mounting Through Hole
Connector/Contact Type Contacts, Vertical, 1 Sided
Number of Positions 6
Pitch 0.039" (1.00mm)
Termination Kinked Pin
FFC, FCB Thickness 0.30mm
Height Above Board 0.232" (5.90mm)
Cable End Type Straight or Tapered
Contact Finish Tin
Housing Material Polybutylene Terephthalate (PBT), Glass Filled
Voltage Rating 100V
Temperature Range - Operating -55°C to 85°C
Material Flammability Rating UL94 V-0
Current Rating 1A
Housing Color Black
Mating Cycles 30
Win Source Part Number 204847-HLW6S-2C7LF
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian HLW6S-2C7LF CAD Model

Description

The Amphenol FCI 204847-HLW6S-2C7LF is a female socket connector.

  • Positions Loaded: 6
  • Pitch: 0.039 inches (1.00mm)
  • Termination: Kinked pin
  • Contact Finish: Tin
  • Voltage Rating: 100V
  • Current Rating: 1A
  • Mounting: Through hole
