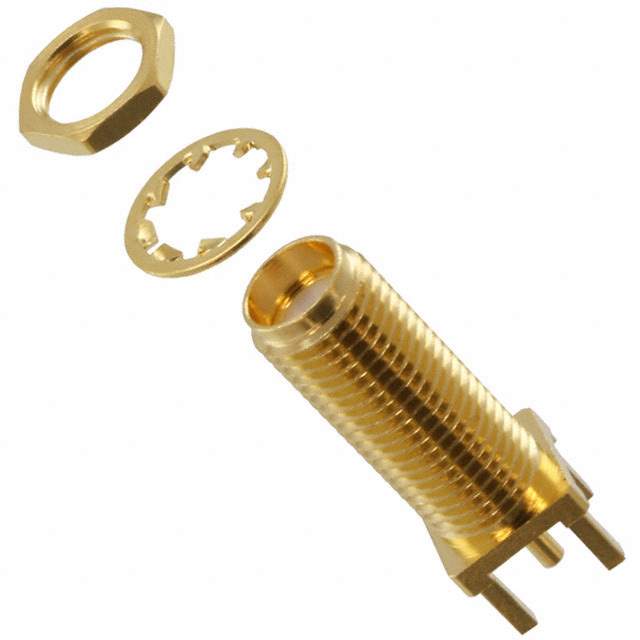

132291 Real Image
Same model may have multiple batches, images only for reference.

132291

Part No 132291
Manufacturer Amphenol-RF Division
Catalog Coaxial Connectors (RF) - Assemblies
Description CONN SMA JACK STR 50 OHM PCB
Datasheet
132291 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Coaxial Connectors (RF) - Coaxial Connector (RF) Assemblies
Mfr Amphenol-RF Division
Package Bag
Product Status Active
Connector Style SMA
Connector Type Jack, Female Socket
Contact Termination Solder
Shield Termination Solder
Impedance 50Ohm
Mounting Type Panel Mount, Through Hole
Mounting Feature Bulkhead - Front Side Nut
Fastening Type Threaded
Frequency - Max 18 GHz
Number of Ports 1
Housing Color Gold
Center Contact Material Beryllium Copper
Includes 3 pcs - 1 Connector, 1 Lockwasher, 1 Nut
Body Material Brass
Body Finish Gold
Center Contact Plating Gold
Dielectric Material Polytetrafluoroethylene (PTFE)
Temperature Range - Operating -65°C ~ 165°C
Mating Cycles 500
Base Product Number 1322
Standard Package 1 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4010
California Prop 65 Warning Information
Win Source Part Number 847459-132291
Ultra Librarian 3D Model Ultra Librarian 132291 CAD Model

Description

The 847459-132291 is an SMA Coaxial Connector Assembly designed for high-frequency applications.

  • Connector Type: Jack with female socket
  • Fastening Type: Threaded
  • Material: Brass
  • Finish: Gold
  • Center Contact Material: Beryllium copper
  • Center Contact Plating: Gold
  • Frequency Range: Up to 18 GHz
  • Impedance: 50Ohm
  • Temperature Range: -65°C to 165°C
  • REACH: Compliant
  • California Prop 65: Compliant
