Same model may have multiple batches, images only for reference.

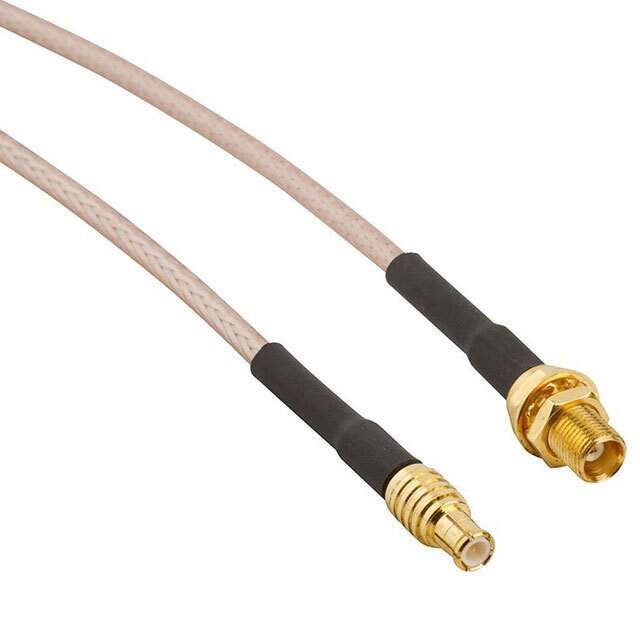

255110-01-M1.00 Real Image
Same model may have multiple batches, images only for reference.

255110-01-M1.00

Part No 255110-01-M1.00
Manufacturer Amphenol-RF Division
Catalog Coaxial Cables (RF)
Description CABLE MCX PLUG-PLUG RG316 1M / Cable Assembly Coaxial 1m MCX to MCX M-F Bag
Datasheet
255110-01-M1.00 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Cable Assemblies
Manufacturer Amphenol RF Division
Series MCX
Gender Female to Male
Style MCX to MCX
1st Connector MCX Male Plug
2nd Connector MCX Female Socket
Length 39.4" (1.0m) 3.3'
Cable Type RG-316
Impedance 50 Ohm
Features Shielded
Win Source Part Number 793159-255110-01-M1.00
Popularity Medium
Supply and Demand Status Limited
Family Name 255110-01
Introduction Date March 26, 2017
ECCN EAR99
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian 255110-01-M1.00 CAD Model

Description

The 255110-01-M1.00 is a shielded MCX to MCX cable assembly manufactured by Amphenol RF Division.

  • Gender: Female to male
  • Length: 39.4 inches (1.0m) 3.3 inches
  • Cable Type: RG-316
  • Impedance: 50 Ohm
  • Frequency Range: Up to 6GHz
