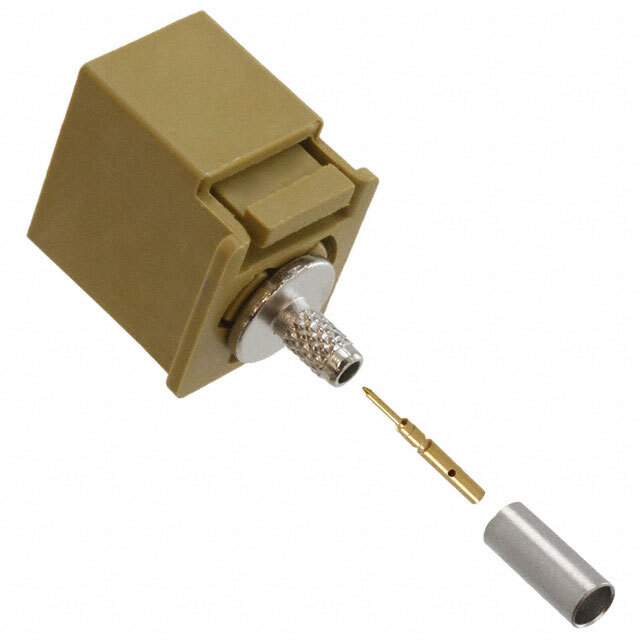

2FA1-NKSJ-C01-0 Real Image
Same model may have multiple batches, images only for reference.

2FA1-NKSJ-C01-0

Part No 2FA1-NKSJ-C01-0
Manufacturer Amphenol-RF Division
Catalog Coaxial Connectors (RF)
Description CONN FAKRA JACK STR 50 OHM CRIMP
Datasheet
2FA1-NKSJ-C01-0 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Amphenol RF Division
Packaging Tray
Status Obsolete(EOL)
Connector Style SMB, Fakra
Connector Type Jack, Female Socket
Contact Termination Crimp
Shield Termination Crimp
Impedance 50 Ohm
Mounting Free Hanging (In-Line)
Cable Group RG-174, 188, 188A, 316, LMR-100, M17/119-RG174
Fastening Type Latch Lock
Maximum Input Frequency 6GHz
Features Code K
Housing Color Curry
Includes 3 pcs - 1 Connector, 1 Contact, 1 Ferrule
Body Material Zinc Die Cast
Body Finish Nickel
Center Contact Plating Gold
Dielectric Material Polytetrafluoroethylene (PTFE)
Temperature Range - Operating -40°C to 100°C
Center Contact Material Phosphor Bronze
Mating Cycles 100
Insertion Loss 0.3dB
Win Source Part Number 1092032-2FA1-NKSJ-C01-0
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 2FA1-NKSJ-C01-0 CAD Model

Description

The 1092032-2FA1-NKSJ-C01-0 is a female SMB/Fakra connector designed for use in RF and microwave applications.

  • Impedance: 50 Ohm
  • Insertion Loss: 0.3dB
  • Contact Termination: Crimp
  • Lock Fastening Type: Latch
  • Material: Zinc Die-Cast
  • Finish: Nickel
  • Housing Color: Curry
  • Cable Compatibility: RG-174, 188, 188A, 316, LMR-100, and M17/119-RG174
  • Package: Tray
  • Pieces Included: 1 connector, 1 contact, and 1 ferrule
  • Manufacturer: Amphenol RF Division
  • Status: Obsolete (EOL)
