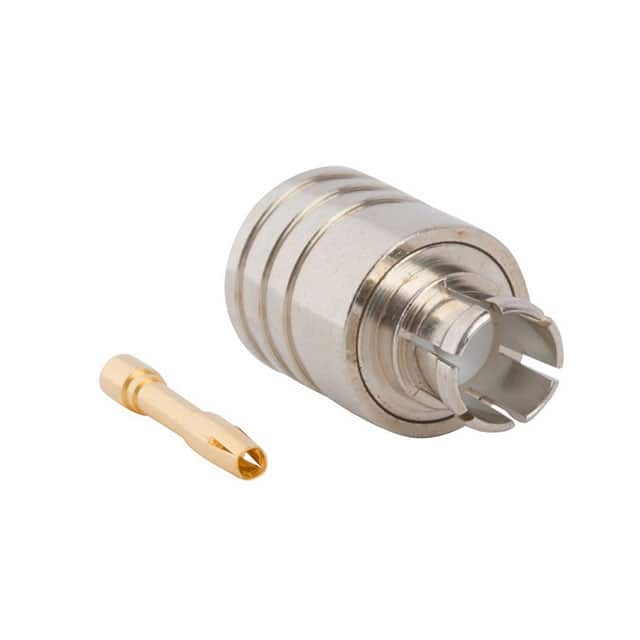

Same model may have multiple batches, images only for reference.
915-1000
Same model may have multiple batches, images only for reference.

915-1000

Part No 915-1000
Manufacturer Amphenol-RF Division
Catalog Coaxial Connectors (RF) - Assemblies
Description CONN PSMP PLUG STR 50OHM SOLDER / PSMP Connector Plug, Female Socket 50Ohm Free Hanging (In-Line) Solder
Datasheet
915-1000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Coaxial Connectors (RF) - Coaxial Connector (RF) Assemblies
Mfr Amphenol-RF Division
Package Bulk
Product Status Active
Connector Style PSMP
Connector Type Plug, Female Socket
Contact Termination Solder
Shield Termination Solder
Impedance 50Ohm
Mounting Type Free Hanging (In-Line)
Cable Group RG-402 (.141" Semi Rigid)
Fastening Type Snap-On
Frequency - Max 2 GHz
Number of Ports 1
Housing Color Silver
Center Contact Material Beryllium Copper
Includes 3 pcs - 1 Connector, 1 Contact, 1 Insulator
Body Material Beryllium Copper
Body Finish White Bronze
Center Contact Plating Gold
Dielectric Material Polytetrafluoroethylene (PTFE)
Temperature Range - Operating -65°C ~ 165°C
Voltage Rating 480 V
Mating Cycles 100
Base Product Number 915
Standard Package 1 pcs
MSL Level Not Applicable
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4010
California Prop 65 Warning Information
Win Source Part Number 931971-915-1000
Ultra Librarian 3D Model Ultra Librarian 915-1000 CAD Model

Description

The Amphenol-RF Division 931971-915-1000 is a coaxial connector assembly designed for RF applications.

  • Category: Connectors and Interconnects, Coaxial Connectors
  • Connector Type: Plug and Female Socket
  • Fastening Type: Snap-On
  • Package: Bulk
  • Termination: Solder
  • Connector Style: PSMP
  • Voltage Rating: 480 V
  • Housing Color: Silver
  • Ports: 1
  • Standard Package: 1 piece
  • Impedance: 50 Ohms
  • Body Material: Beryllium Copper
  • Body Finish: White Bronze
  • Center Contact Material: Beryllium Copper
  • Center Contact Plating: Gold
  • Dielectric Material: Polytetrafluoroethylene (PTFE)
  • Temperature Range: -65°C to 165°C
  • HTSUS: 8536.69.4010
  • Manufacturer: Amphenol-RF Division
  • Base Product Number: 915
  • Product Status: Active
  • California Prop 65: Compliant
