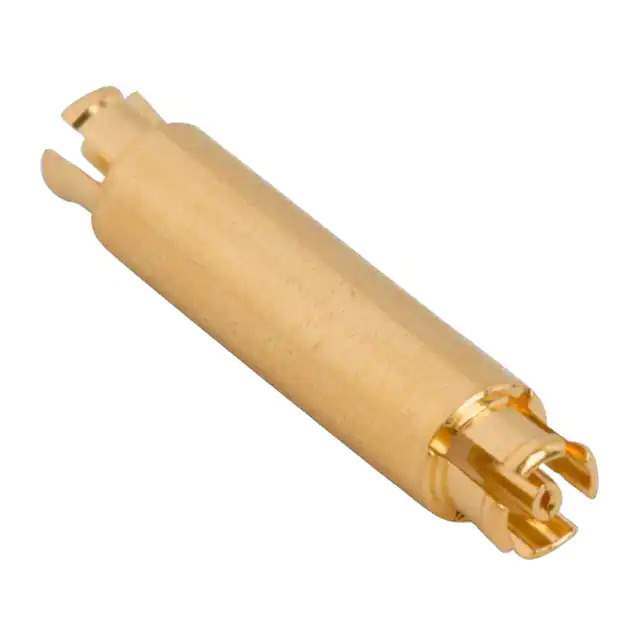

Same model may have multiple batches, images only for reference.

925-166A-51S

Name: 925-166A-51S
Brand: Amphenol-RF Division
SKU: 891628
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	925-166A-51S
Manufacturer	Amphenol-RF Division
Catalog	Coaxial Connectors (RF)
Description	CONN ADAPTER SMPM PLUG - PLUG / Adapter Coaxial Connector SMPM Jack, Female Socket To SMPM Jack, Female Socket 50Ohm
Datasheet	925-166A-51S Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Coaxial Connectors (RF) - Coaxial Connector (RF) Adapters
Mfr	Amphenol-RF Division
Package	Bulk
Product Status	Active
Adapter Type	Jack to Jack
Conversion Type	Same Series
Adapter Series	SMPM to SMPM
Center Gender	Female to Female
Convert From (Adapter End)	SMPM Jack, Female Socket
Convert To (Adapter End)	SMPM Jack, Female Socket
Impedance	50Ohm
Style	Straight
Mounting Type	Free Hanging (In-Line)
Fastening Type	Snap-On, Snap-On
Frequency - Max	65 GHz
Center Contact Plating	Gold
Body Material	Beryllium Copper
Body Finish	Gold
Center Contact Material	Beryllium Copper
Dielectric Material	Polytetrafluoroethylene (PTFE)
Mating Cycles	100, 1000
Temperature Range - Operating	-65°C ~ 165°C
Base Product Number	92516
Standard Package	1 pcs
MSL Level	Not Applicable
REACH Status	REACH Affected
ECCN	EAR99
HTSUS	8536.69.4010
California Prop 65	Warning Information
Win Source Part Number	891628-925-166A-51S
Ultra Librarian 3D Model	Ultra Librarian 925-166A-51S CAD Model

Alternative Products

Description

The SMPM Jack to Jack Coaxial Adapter is a high-quality adapter designed for RF applications.

Fastening Type: snap-on
Style: straight
Material: beryllium copper
Finish: gold
Impedance: 50 Ohm
Frequency: up to 65 GHz
Mounting: free-hanging (in-line)
Temperature Range: -65°C to 165°C
Converting From: SMPM jack
Converting To: SMPM jack
Series: Amphenol-RF Division
California Prop 65: complies
REACH Status: REACH affected
