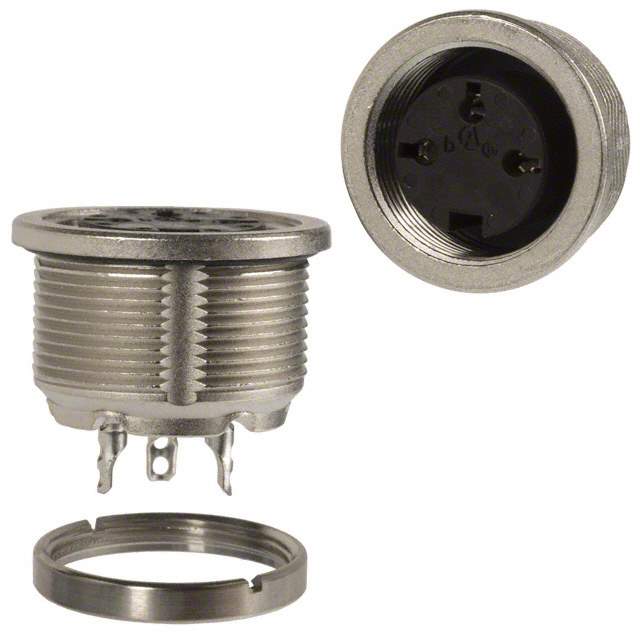

C091 31N003 100 2 Real Image
Same model may have multiple batches, images only for reference.

C091 31N003 100 2

Part No C091 31N003 100 2
Manufacturer Amphenol Sine Systems Corp
Catalog Circular Connectors
Description Circular Receptacle 3 pos. Solder Terminal Female Coupling Nut Connection Die Cast
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Approvals UL
Body Material Metal
Connector Type Circular, Receptacle, Socket
Contact Gender Female
Contact Plating Silver
Contact Resistance 5 mΩ
Current Rating 5 A
Fastening Type Threaded
Features Shielded
Gender Female
Insulation Material Plastic
Insulation Resistance 1 GΩ
Lead Free Yes
Length 17.6 mm
Max Current Rating 5 A
Maximum Operating Temperature 100 °C
Min Operating Temperature -40 °C
Mount Free Hanging, Panel
Number of Contacts 3
Number of Pins 3
Number of Positions 3
Orientation Straight
Packaging Box
Plating Nickel
Radiation Hardening No
Ratings Dust Tight, IP65, IP67, Water Resistant, Waterproof
REACH SVHC No SVHC
RoHS Compliant
Schedule B 8536694030
Termination Solder
Voltage Rating 300 V
Voltage Rating (AC) 300 V
Wire/Cable Diameter 6 mm
Wire Gauge (Max) 26 AWG
Wire Gauge (Min) 20 AWG
Working Voltage 250 V
Win Source Part Number 1081384-C091 31N003 100 2
Categories Circular Connectors
Manufacturer Amphenol Sine Systems Corp
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian C091 31N003 100 2 CAD Model

Description

The Amphenol Sine Systems Corp 1081384-C091 31N003 100 2 is a circular, shielded, receptacle connector designed for electronic components.

  • Type: receptacle
  • Fastening Type: threaded
  • Termination: solder
  • Voltage Rating: 300 V
  • Current Rating: 5 A
  • Contacts: 3
  • Housing Material: metal
  • Rating: IP65/IP67 rated and is dust tight, water resistant, and waterproof
  • Contact Material: silver plated
  • Gender: female
  • Environment: widely used in industrial environments
  • Compliance: RoHS compliant
  • Supply: short in supply
  • Popularity: low popularity in the market
