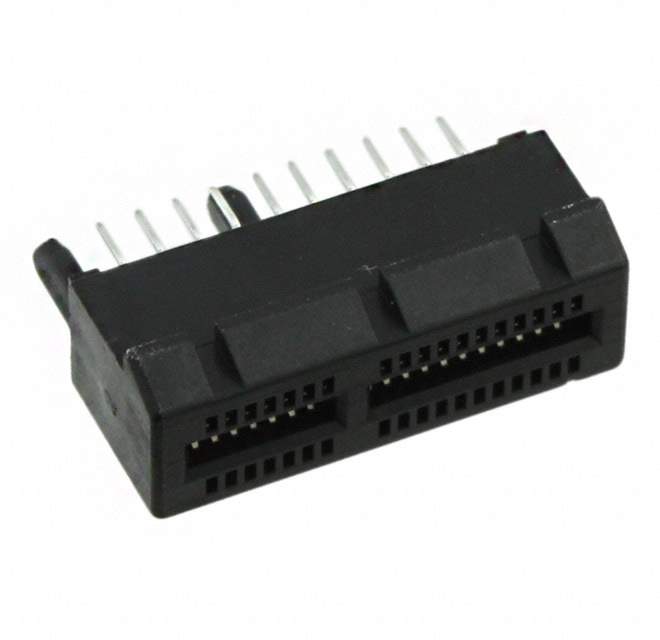

10018783-10200TLF Real Image
Same model may have multiple batches, images only for reference.

10018783-10200TLF

Part No 10018783-10200TLF
Manufacturer Amphenol
Catalog Card Edge Connectors - Edgeboard Connectors
Description CONN PCI EXP FMALE 36POS 0.039 / 36 Position Female Connector PCI Express™ Gold 0.039" (1.00mm) Black
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Card Edge Connectors - Edgeboard Connectors
Mfr Amphenol ICC (FCI)
Package Tray
Card Type PCI Express™
Gender Female
Number of Positions 36
Card Thickness 0.062" (1.57mm)
Number of Rows 2
Pitch 0.039" (1.00mm)
Read Out Dual
Features Board Guide, Locking Ramp
Mounting Type Through Hole
Termination Solder, Staggered
Contact Material Copper Alloy
Contact Finish Gold
Contact Finish Thickness Flash
Contact Type Cantilever
Color Black
Temperature Range - Operating -55°C ~ 85°C
Material - Insulation Polyamide (PA), Nylon, Glass Filled
Base Product Number 10018783
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4040
Other Names 2266-10018783-10200TLF,609-1977
Standard Package 70
Win Source Part Number 1228013-10018783-10200TLF
Ultra Librarian 3D Model Ultra Librarian 10018783-10200TLF CAD Model

Description

The card edge connector is designed for PCI Express™ applications with a pitch of 0.039 inches (1.00mm) and 36 positions loaded in two rows.

  • Application: PCI Express™
  • Pitch: 0.039 inches (1.00mm)
  • Positions: 36
  • Rows: 2
  • Contact Type: Cantilever
  • Contact Finish: Gold (Flash thickness)
  • Contact Material: Copper Alloy
  • Insulation Material: Polyamide (PA), nylon, glass-filled (Black color)
  • Mounting: Through-hole
  • Temperature Range: -55°C to 85°C
  • Package: Tray
  • Standard Package: 70 units
  • Alternative Part Number: 10018783-10200TLF
