Same model may have multiple batches, images only for reference.

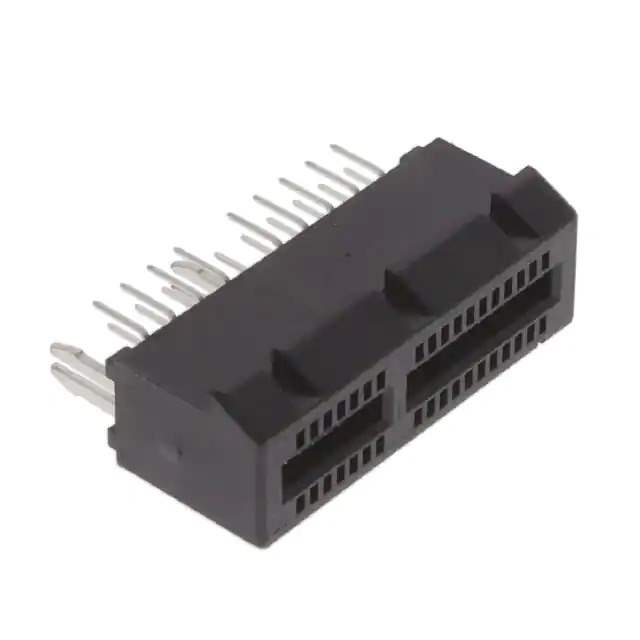

10018783-11110TLF Real Image
Same model may have multiple batches, images only for reference.

10018783-11110TLF

Part No 10018783-11110TLF
Manufacturer Amphenol
Catalog Card Edge Connectors - Edgeboard Connectors
Description CONN PCI EXP FMALE 36POS 0.039 / 36 Position Female Connector PCI Express? Gold 0.039" (1.00mm) Black
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Card Edge Connectors - Edgeboard Connectors
Mfr Amphenol
Package Tray
Product Status Active
Card Type PCI Express™
Gender Female
Number of Positions 36
Card Thickness 0.062" (1.57mm)
Number of Rows 2
Pitch 0.039" (1.00mm)
Read Out Dual
Features Board Lock, Locking Ramp
Mounting Type Through Hole
Termination Solder, Staggered
Contact Material Copper Alloy
Contact Finish Gold
Contact Finish Thickness 15.0µin (0.38µm)
Contact Type Cantilever
Color Black
Temperature Range - Operating -55°C ~ 85°C
Material - Insulation Polyamide (PA), Nylon, Glass Filled
Base Product Number 10018783
Standard Package 70 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 904810-10018783-11110TLF
Ultra Librarian 3D Model Ultra Librarian 10018783-11110TLF CAD Model

Description

The Amphenol Edgeboard Connector is a reliable and versatile connector designed for card edge applications from Amphenol.

  • Positions: 36
  • Pitch: 0.039 inches (1.00mm)
  • Color: Black
  • Features: Board lock and locking ramp
  • Contacts: Cantilever
  • Rows: Two
  • Connection: Soldered and staggered
  • Contact Finish: Gold
  • Contact Finish Thickness: 15.0µin (0.38µm)
  • Contact Material: Copper alloy
  • Insulation Material: Polyamide
  • Card Type: PCI Express™
  • Temperature Range: -55°C to 85°C
