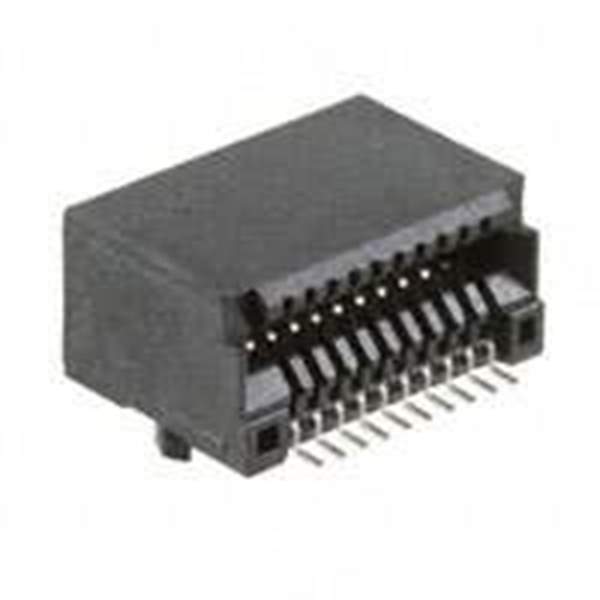

10056847-101LF

Part No 10056847-101LF
Manufacturer Amphenol
Catalog Card Edge Connectors - Edgeboard Connectors
Description CONN EDGE DUAL FMALE 20POS 0.039
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors
Estimated Pruduction Lead Time 7 Weeks
Features 20 Position Female Connector Non Specified - Dual Edge Gold 0.031" (0.80mm) Black
Manufacturer AMPHENOL
Package Reel - TR
Mounting Surface Mount, Right Angle
Family Name 10056847
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 609-4943-2, 609-4943-1, 10056847-101LF-ND, 609-4943-6
Quantity per package 500
Popularity High
Supply and Demand Status Balance
Win Source Part Number 904850-10056847-101LF
Ultra Librarian 3D Model Ultra Librarian 10056847-101LF CAD Model

Description

This 10056847 family connector from Amphenol is a 20 position female connector.

  • Positions: 20
  • Type: Female Connector
  • Edge Type: Dual Edge Gold
  • Dimension: 0.031" (0.80mm)
  • Color: Black
  • Mounting Type: Surface Mount, Right Angle
  • Package: Reel
  • ECCN: EAR99
