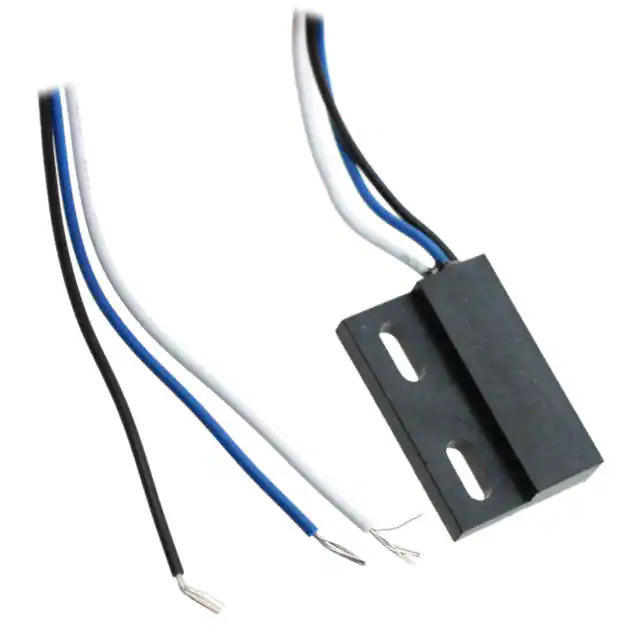

59150-030 Littelfuse Inc.
Same model may have multiple batches, images only for reference.

59150-030

Part No 59150-030
Manufacturer Littelfuse Inc.
Catalog Magnetic Sensors - Position, Proximity, Speed (Modules)
Description SENSOR REED SW SPDT WIRE LEADS
Datasheet
59150-030 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - Magnetic Sensors - Position, Proximity, Speed (Modules)
Mfr Littelfuse Inc.
Series 59150
Package Bulk
Product Status Active
Type Reed Switch
Output Type SPDT
Actuator Material Magnet
Termination Style Wire Leads
Voltage - Supply -
Must Operate 5.71mm
Must Release 20.32mm
Temperature Range - Operating -40°C ~ 105°C (TA)
Package / Case Flange Mount
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 1375879-59150-030
Ultra Librarian 3D Model Ultra Librarian 59150-030 CAD Model

Description

The 1375879-59150-030 is a reed switch magnetic sensor from Littelfuse Inc.

  • Series: 59150 series
  • Package: Flange mount
  • Output Type: SPDT
  • Termination: Wire leads
  • Must Operate Distance: 5.71mm
  • Must Release Distance: 20.32mm
  • Operating Temperature: -40°C to 105°C
