Same model may have multiple batches, images only for reference.

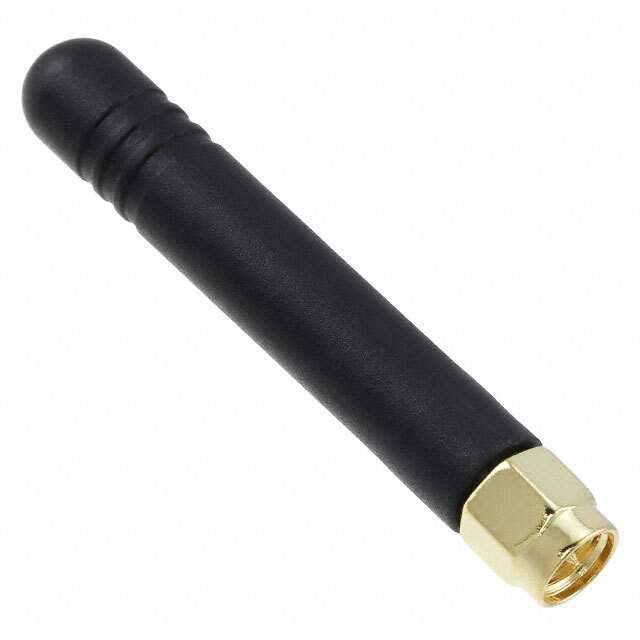

ANT-4HEL2-SMA Real Image
Same model may have multiple batches, images only for reference.

ANT-4HEL2-SMA

Part No ANT-4HEL2-SMA
Manufacturer RF Solutions
Catalog RF Antennas
Description RF ANT 433MHZ WHIP STR SMA 58MM / 433MHz General Purpose Whip, Straight RF Antenna 2dBi SMA Male Connector Mount
Datasheet
ANT-4HEL2-SMA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - RF Antennas
Mfr RF Solutions
Package Bulk
Frequency Group UHF (300MHz ~ 1GHz)
Frequency (Center/Band) 433MHz
Antenna Type Whip, Straight
Number of Bands 1
VSWR 2
Gain 2dBi
Termination SMA Male
Mounting Type Connector Mount
Height (Max) 2.283" (58.00mm)
Applications General Purpose
Base Product Number ANT-4
Standard Package 1
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8529.10.9100
Win Source Part Number 1349191-ANT-4HEL2-SMA
Ultra Librarian 3D Model Ultra Librarian ANT-4HEL2-SMA CAD Model

Description

The RF Solutions ANT-4 series whip straight antenna is designed for general-purpose use in the UHF frequency group (300MHz ~ 1GHz).

  • Frequency Group: UHF
  • Frequency: 433MHz
  • Gain: 2dBi
  • VSWR: 2
  • Termination: SMA male
  • Height: 2.283" (58.00mm)
  • Mounting: Connector mount
  • Packaging: Bulk
