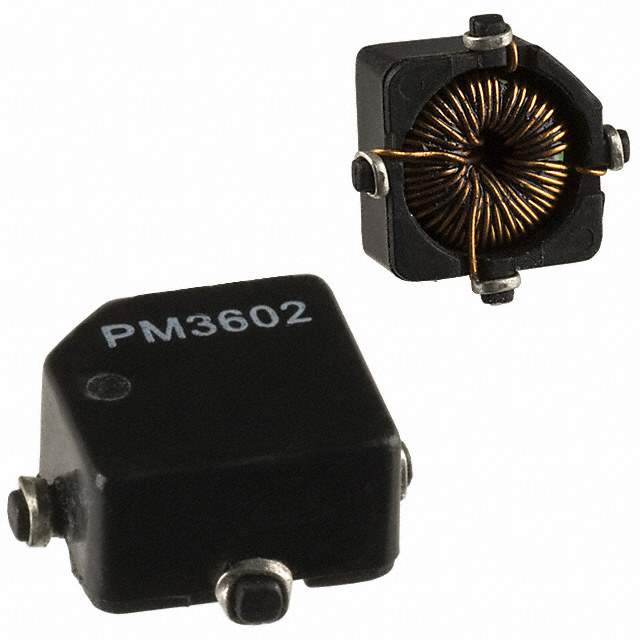

PM3602-5-RC

Part No PM3602-5-RC
Manufacturer Bourns Inc.
Catalog Arrays, Signal Transformers
Description INDUCT ARRAY 2 COIL 5UH SMD / Unshielded 2 Coil Inductor Array 20 µH Inductance - Connected in Series 5 µH Inductance - Connected in Parallel 23mOhm Max DC Resistance (DCR) - Parallel 2.41 A Nonstandard
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Arrays, Signal Transformers
Mfr Bourns Inc.
Series PM3600
Package Tape & Reel
Number of Coils 2
Inductance - Connected In Parallel 5 µH
Inductance - Connected In Series 20 µH
Tolerance ±20%
Current Rating - Parallel 2.41 A
Current Rating - Series 1.2 A
DC Resistance (DCR) - Parallel 23mOhm Max
DC Resistance (DCR) - Series 92mOhm Max
Shielding Unshielded
Temperature Range - Operating -55°C ~ 125°C
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.452" L x 0.354" W (11.48mm x 8.99mm)
Height 0.225" (5.72mm)
Base Product Number PM3602
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Other Names M10135CT,PM36025RC,M10135TR,M10135DKR
Standard Package 400
Win Source Part Number 1085706-PM3602-5-RC
Ultra Librarian 3D Model Ultra Librarian PM3602-5-RC CAD Model

Description

The PM3602-5-RC is an inductor array from Bourns Inc.

  • Package: Non-standard
  • Mounting: Surface mountable
