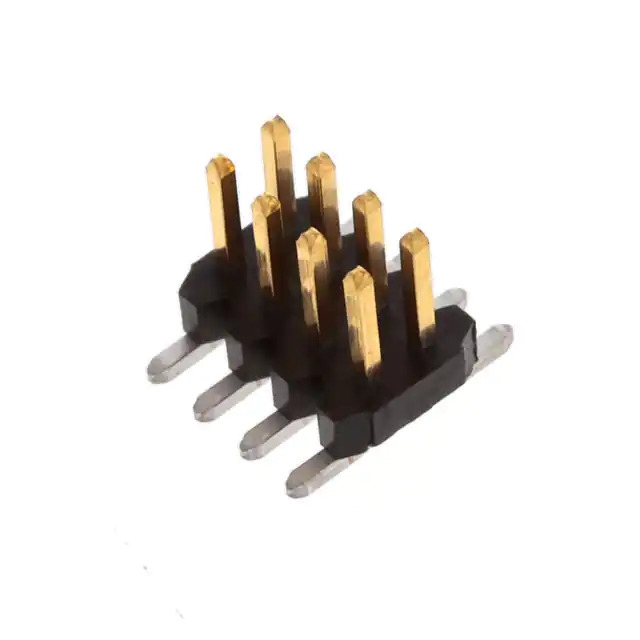

Same model may have multiple batches, images only for reference.

20021121-00008C4LF

Name: 20021121-00008C4LF
Brand: Amphenol
SKU: 1366023
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	20021121-00008C4LF
Manufacturer	Amphenol
Catalog	Rectangular Connectors
Description	CONN HEADER SMD 8POS 1.27MM
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	Amphenol ICC (FCI)
Series	Minitek127® 1.27mm
Package	Tape & Reel
Product Status	Active
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.050" (1.27mm)
Number of Positions	8
Number of Rows	2
Row Spacing - Mating	0.050" (1.27mm)
Number of Positions Loaded	All
Style	Board to Board
Shrouding	Unshrouded
Mounting Type	Surface Mount
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.120" (3.05mm)
Contact Length - Post	-
Overall Contact Length	-
Insulation Height	-
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10.0µin (0.25µm)
Contact Finish - Post	Tin
Contact Material	Copper Alloy
Insulation Material	Thermoplastic
Features	Pick and Place
Temperature Range - Operating	-55°C ~ 125°C
Ingress Protection	-
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	1A per Contact
Voltage Rating	125VAC
Mated Stacking Heights	-
Contact Finish Thickness - Post	50.0µin (1.27µm)
Applications	-
Base Product Number	20021121
MSL Level	1 (Unlimited)
REACH Status	REACH Affected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1366023-20021121-00008C4LF
Ultra Librarian 3D Model	Ultra Librarian 20021121-00008C4LF CAD Model

Alternative Products

Description

The Amphenol ICC (FCI) Minitek127 1.27mm Header is a compact and reliable connector for board-to-board applications.

Contact Gender: Male Pins
Current Rating: 1A per contact
Termination: Solder
Pitch: 0.050" (1.27mm)
Positions: 8
Rows: 2
Row Spacing: 0.050" (1.27mm)
Contact Material: Copper Alloy with Gold Finish
Insulation Material: Thermoplastic
Flammability Rating: UL94 V-0
Insulation Color: Black
Voltage Rating: 125VAC
Series: 20021121
Package: Tape & Reel
Operating Temperature: -55°C to 125°C
