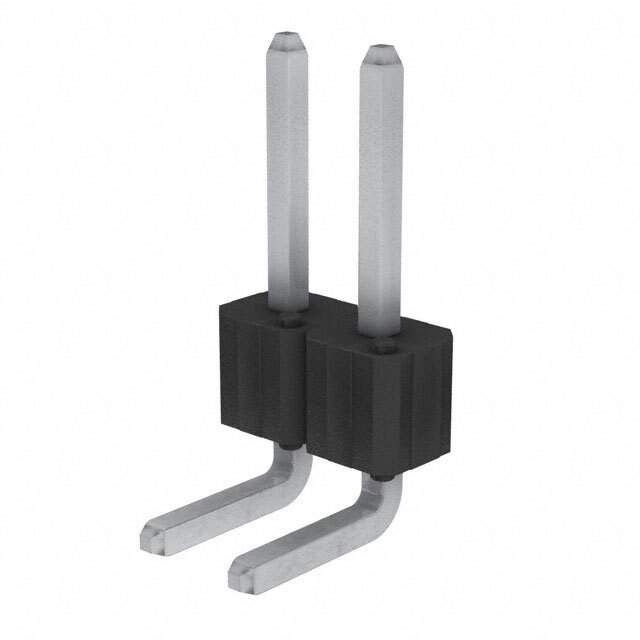

Same model may have multiple batches, images only for reference.

68016-402HLF

Name: 68016-402HLF
Brand: Amphenol
SKU: 1016431
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	68016-402HLF
Manufacturer	Amphenol
Catalog	Rectangular Connectors
Description	CONN HEADER R/A 2POS 2.54MM / Connector Header Through Hole, Right Angle 2 position 0.100" (2.54mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr	Amphenol ICC (FCI)
Series	BERGSTIK® II
Package	Bulk
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	2
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Board
Shrouding	Unshrouded
Mounting Type	Through Hole, Right Angle
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.230" (5.84mm)
Contact Length - Post	0.120" (3.05mm)
Insulation Height	0.095" (2.41mm)
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Finish Thickness - Mating	100.0µin (2.54µm)
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Temperature Range - Operating	-65°C ~ 130°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	3A
Base Product Number	68016
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Names	609-68016-402HLF,68016-402HLF-ND
Standard Package	100
Win Source Part Number	1016431-68016-402HLF
Ultra Librarian 3D Model	Ultra Librarian 68016-402HLF CAD Model

Alternative Products

Description

This BERGSTIK® II header connector is a rectangular connector with two positions and one row.

Positions: 2
Row: 1
Application: Board-to-Board
Pitch: 0.100" (2.54mm)
Contact Material: Phosphor Bronze
Contact Finish (Mating): Tin
Contact Length (Mating): 0.230" (5.84mm)
Contact Length (Post): 0.120" (3.05mm)
Current Rating: 3A
Flammability Rating: UL94 V-0
Temperature Range: -65°C to 130°C
Mounting: Through Hole, Right Angle
Style: Unshrouded
Fastening Type: Push-Pull
Packaging: Bulk
Standard Package: 100
