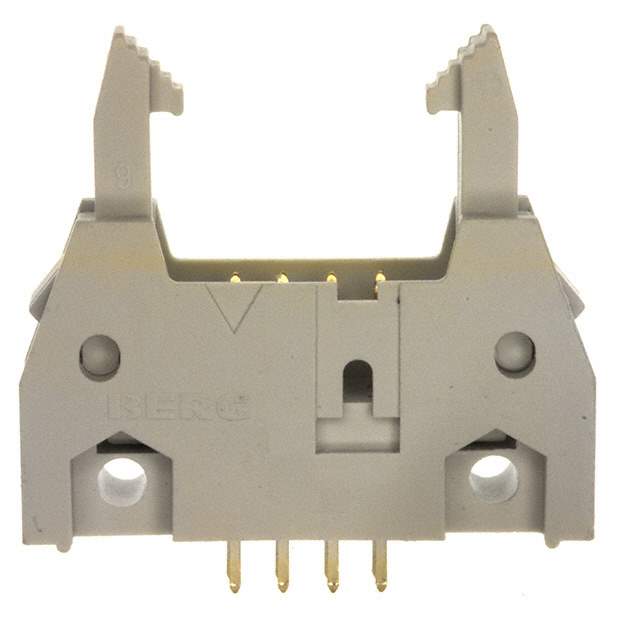

71918-108LF Real Image
Same model may have multiple batches, images only for reference.

71918-108LF

Part No 71918-108LF
Manufacturer Amphenol
Catalog Rectangular Connectors
Description CONN HEADER VERT 8POS 2.54MM  /  Connector Header Through Hole 8 position 0.100" (2.54mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr Amphenol ICC (FCI)
Series Quickie™
Package Tube
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 8
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type Latch Lock/Eject Hooks
Contact Length - Mating 0.228" (5.80mm)
Contact Length - Post 0.114" (2.90mm)
Insulation Height 0.685" (17.40mm)
Contact Shape Square
Contact Finish - Mating Gold, GXT™
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Contact Finish - Post Tin
Contact Material Phosphor Bronze
Insulation Material Thermoplastic, Glass Filled
Features Keying Slot, Mounting Flange
Material Flammability Rating UL94 V-0
Insulation Color Gray
Contact Finish Thickness - Post 78.7µin (2.00µm)
Base Product Number 71918
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4040
Other Names 71918108LF,2266-71918-108LF,71918-108LF-ND,609-3531
Standard Package 17
Win Source Part Number 1030247-71918-108LF
Ultra Librarian 3D Model Ultra Librarian 71918-108LF CAD Model

Description

The Quickie™ 1030247-71918-108LF is a male pin header connector available at Win Source.

  • Shape: Rectangular
  • Connector Style: Board to Cable/Wire
  • Positions: 8
  • Keying Slot: Yes
  • Mounting Flange: Yes
  • Mounting Type: Through Hole
  • Fastening Type: Latch Lock/Eject Hook
  • Contact Material: Phosphor Bronze
  • Contact Finish: Gold GXT™
  • Insulation Material: Thermoplastic, Glass Filled
  • Material Flammability Rating: UL94 V-0
  • ECCN: Approved
  • REACH: Affected
