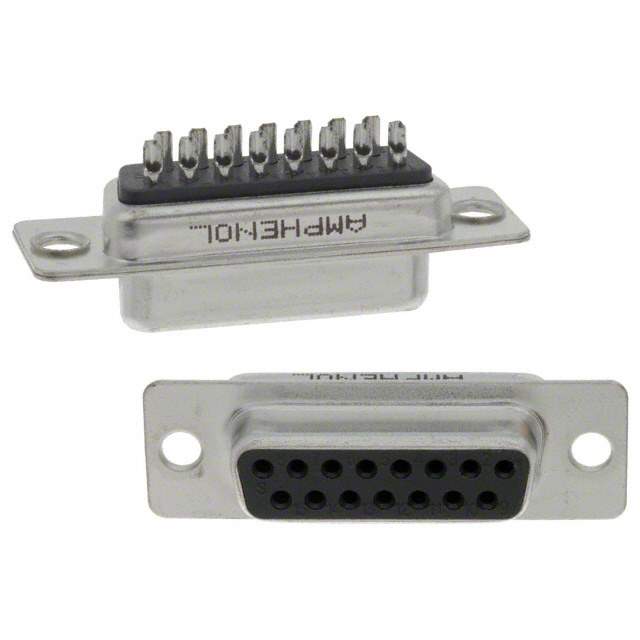

G17S1500110EU

Name: G17S1500110EU
Brand: Amphenol
SKU: 1229240
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	G17S1500110EU
Manufacturer	Amphenol
Catalog	D - Sub Connectors
Description	CONN D-SUB RCPT 15POS SLDR CUP / 15 Position D-Sub Receptacle, Female Sockets Connector
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>D-Sub Connectors
Mfr	Amphenol ICC (Commercial Products)
Series	G17S
Package	Tray
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Number of Positions	15
Number of Rows	2
Mounting Type	Free Hanging (In-Line)
Shell Size, Connector Layout	2 (DA, A)
Contact Type	Signal
Flange Feature	Housing/Shell (Unthreaded)
Termination	Solder Cup
Shell Material, Finish	Steel, Tin Plated
Contact Finish Thickness	Flash
Material Flammability Rating	UL94 V-0
Current Rating (Amps)	5A
Voltage Rating	250V
Color	Black
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Base Product Number	G17S15
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.8000
Standard Package	50
Win Source Part Number	1229240-G17S1500110EU
Ultra Librarian 3D Model	Ultra Librarian G17S1500110EU CAD Model

Alternative Products

Description

The G17S series connector is a D-sub connector designed for signal applications with 15 positions loaded in two rows.

Series: G17S
Application: Signal
Positions: 15
Rows: Two
Type: Receptacle
Contact Type: Female socket
Termination: Solder cup
Contact Material: Steel, tin-plated
Voltage Rating: 250V
Current Rating: 5A
Insulation Material: Polybutylene terephthalate (PBT), glass-filled
Flammability Rating: UL94 V-0
Mounting: Free-hanging (in-line)
Package: Tray
Standard Package: 50 units
Alternative Part Number: G17S1500110EU
