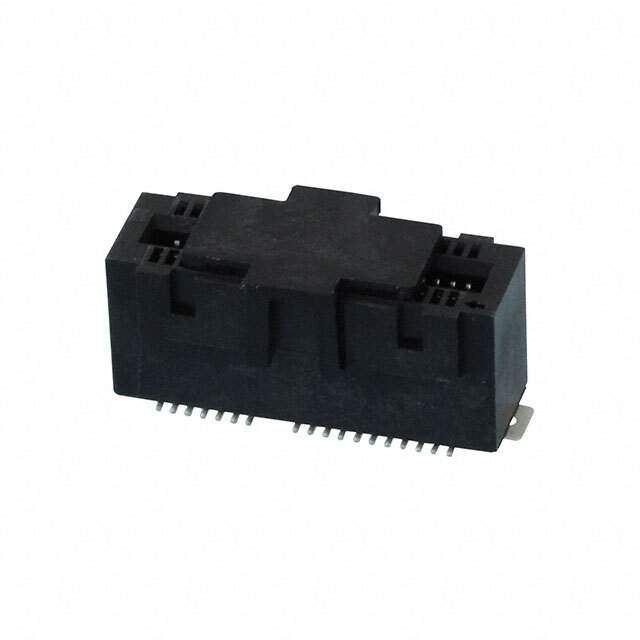

G630H361621EU Real Image
Same model may have multiple batches, images only for reference.

G630H361621EU

Part No G630H361621EU
Manufacturer Amphenol
Catalog Card Edge Connectors - Edgeboard Connectors
Description CONN PCI EXP FMALE 36POS 0.039 / 36 Position Female Connector PCI Express™ Gold 0.039" (1.00mm) Black
Datasheet
G630H361621EU Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Card Edge Connectors>Edgeboard Connectors
Manufacturer Amphenol ICC (FCI)
Packaging Tray
Card Type PCI Express™
Gender Female
Number of Positions 36
Card Thickness 0.062" (1.57mm)
Number of Rows 2
Pitch 0.039" (1.00mm)
Read Out Dual
Features Cap, Locking Ramp
Mounting Surface Mount
Termination Solder
Contact Material Copper Alloy
Contact Finish Gold
Contact Finish Thickness 15.0µin (0.38µm)
Color Black
Material - Insulation Polyamide (PA9T), Nylon 9T
Base Product Number G630
RoHS Status RoHS Compliant
MSL Level 4 (72 Hours)
ECCN EAR99
HTSUS 8536.69.4040
Standard Package 54
Win Source Part Number 1333987-G630H361621EU
Ultra Librarian 3D Model Ultra Librarian G630H361621EU CAD Model

Description

The Amphenol ICC (FCI) 1333987-G630H361621EU is a female card edge connector with 36 positions and a pitch of 0.039 inches.

  • Color: Black
  • Features: Cap and Locking Ramp
  • Card Type: PCI Express™
  • Thickness: 0.062 inches
  • Contact Material: Copper Alloy
  • Insulation Material: Polyamide (PA9T), Nylon 9T
  • Mounting Style: Surface Mount
  • Termination: Solder
  • Contact Finish: Gold
  • Contact Finish Thickness: 15.0μin (0.38μm)
  • Operating Temperature Range: -55°C to 175°C (TJ)
  • RoHS: Compliant
  • MSL Level: 4 (72 hours)
  • Standard Package: 54
