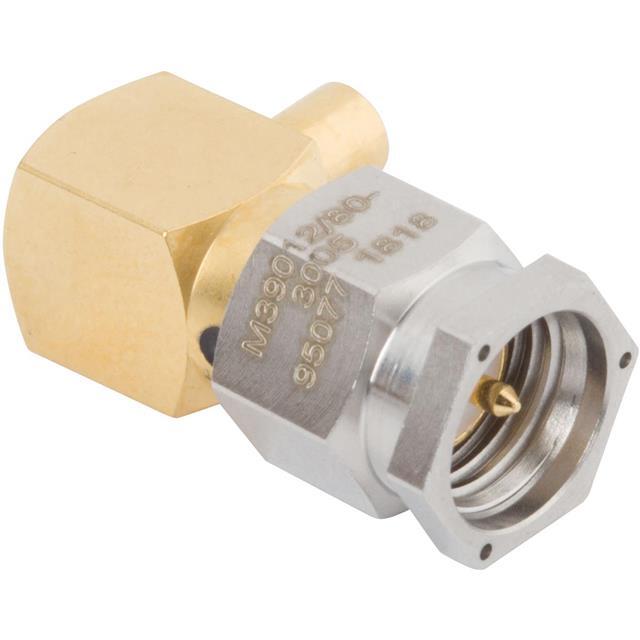

Same model may have multiple batches, images only for reference.
M39012/56B3119 Amphenol – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

M39012/56B3119

Part No M39012/56B3119
Manufacturer Amphenol
Catalog Coaxial Connectors (RF) - Assemblies
Description CONN SMA PLUG R/A 50OHM CRIMP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Connector Style SMA
Connector Type Plug, Male Pin
Contact Termination Crimp
Shield Termination Crimp
Impedance 50 Ohms
Mounting Type Free Hanging (In-Line), Right Angle
Cable Group RG-174, 316
Fastening Type Threaded
Frequency - Max 12.4 GHz
Housing Color Silver
Center Contact Material Brass
Package Tray
Supply and Demand Status Shortage
Win Source Part Number 1631115-M39012/56B3119
Ultra Librarian 3D Model Ultra Librarian M39012/56B3119 CAD Model

Description

N
