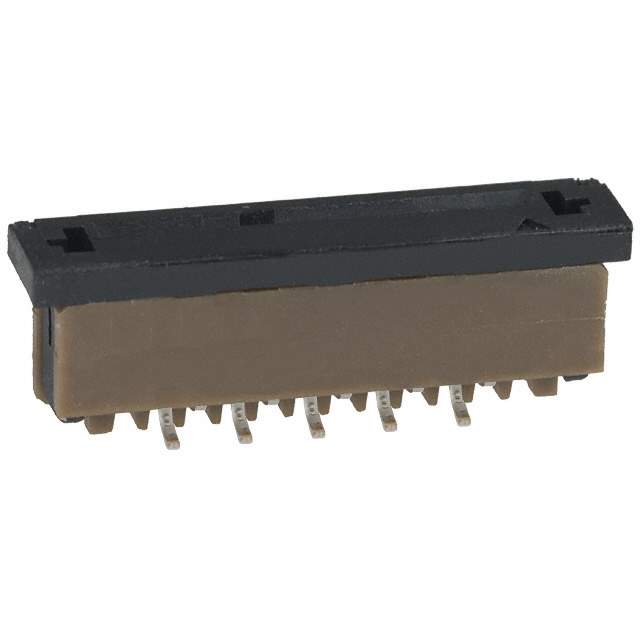

SFW10S-2STE1LF Real Image
Same model may have multiple batches, images only for reference.

SFW10S-2STE1LF

Part No SFW10S-2STE1LF
Manufacturer Amphenol
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FFC FPC VERT 10POS 1MM SMD  /  10 Position FFC, FPC Connector Contacts, Vertical - 1 Sided 0.039" (1.00mm) Surface Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>FFC, FPC (Flat Flexible) Connectors
Mfr Amphenol ICC (FCI)
Series SFW
Package Tape & Reel
Flat Flex Type FFC, FPC
Mounting SMD (SMT)
Connector/Contact Type Contacts, Vertical - 1 Sided
Number of Positions 10
Pitch 0.039" (1.00mm)
Termination Solder
FFC, FCB Thickness 0.33mm
Height Above Board 0.209" (5.30mm)
Contact Material Phosphor Bronze
Contact Finish Tin
Housing Material Thermoplastic, Glass Filled
Actuator Material Thermoplastic, Glass Filled
Features Zero Insertion Force (ZIF)
Voltage Rating 100V
Temperature Range - Operating -55°C ~ 105°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 1A
Housing Color Brown
Mating Cycles 20
Base Product Number SFW10S
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4051
Other Names 609-1140-6,609-1140-1,609-1140-2,SFW10S2STE1LF
Standard Package 1,000
Win Source Part Number 989067-SFW10S-2STE1LF
Ultra Librarian 3D Model Ultra Librarian SFW10S-2STE1LF CAD Model

Description

The SFW10S-2STE1LF is a 10-position zero insertion force (ZIF) FFC/FPC connector from Amphenol ICC (FCI).

  • Pitch: 0.039” (1.00mm)
  • Height above the board: 0.209” (5.30mm)
  • Contact Material: Phosphor Bronze
  • Contact Finish: Tin
  • Housing Material: Thermoplastic, Glass-Filled
  • Flammability Rating: UL94 V-0
  • Housing Color: Brown
  • Flat Flex Type: FFC/FPC
  • Contacts: Vertical - 1 Sided Connector
  • FFC/FCB Thickness: 0.33mm
  • Operating Temperature: -55°C to 105°C
  • Current Rating: 1A
  • Package: Tape and Reel
  • Mounting Type: SMD (SMT)
  • Mating Cycle: 20
  • REACH Affected: Yes
