Same model may have multiple batches, images only for reference.

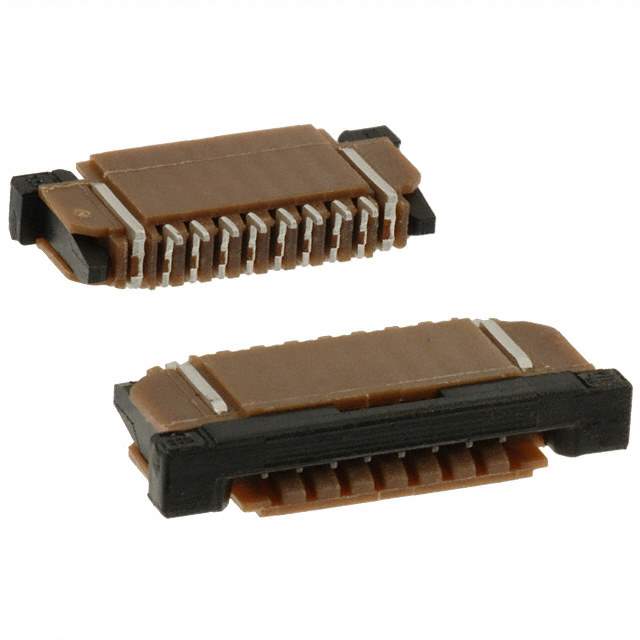

SFW8R-1STE1LF Real Image
Same model may have multiple batches, images only for reference.

SFW8R-1STE1LF

Part No SFW8R-1STE1LF
Manufacturer Amphenol
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FFC BOTTOM 8POS 1.00MM R/A  /  8 Position FFC, FPC Connector Contacts, Bottom 0.039" (1.00mm) Surface Mount, Right Angle
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>FFC, FPC (Flat Flexible) Connectors
Mfr Amphenol ICC (FCI)
Series SFW-R
Package Tape & Reel
Flat Flex Type FFC, FPC
Mounting Type Surface Mount, Right Angle
Connector/Contact Type Contacts, Bottom
Number of Positions 8
Pitch 0.039" (1.00mm)
Termination Kinked Pin
FFC, FCB Thickness 0.30mm
Height Above Board 0.106" (2.70mm)
Cable End Type Straight or Tapered
Contact Material Phosphor Bronze
Contact Finish Tin
Housing Material Polyphenylene Sulfide (PPS), Glass Filled
Actuator Material Polyphenylene Sulfide (PPS), Glass Filled
Features Zero Insertion Force (ZIF)
Voltage Rating 100V
Temperature Range - Operating -55°C ~ 105°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 1A
Housing Color Brown
Mating Cycles 20
Base Product Number SFW8R
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4051
Other Names 609-1893-6,2266-SFW8S-2STE1LFTR,2266-SFW8R-1STE1LFTR,609-1893-1,SFW8R1STE1LF,609-1893-2
Standard Package 2,000
Win Source Part Number 984657-SFW8R-1STE1LF
Ultra Librarian 3D Model Ultra Librarian SFW8R-1STE1LF CAD Model

Description

The Amphenol ICC (FCI) 984657-SFW8R-1STE1LF is a flat flexible connector that belongs to the category of FFC, FPC (Flat Flexible) connectors.

  • Feature: Zero insertion force (ZIF)
  • Termination: Kinked pin
  • Contact Finish: Tin
  • Voltage Rating: 100V
  • Standard Package: 2,000
  • Current Rating: 1A
  • REACH: Affected
  • Base Product Number: SFW8R
