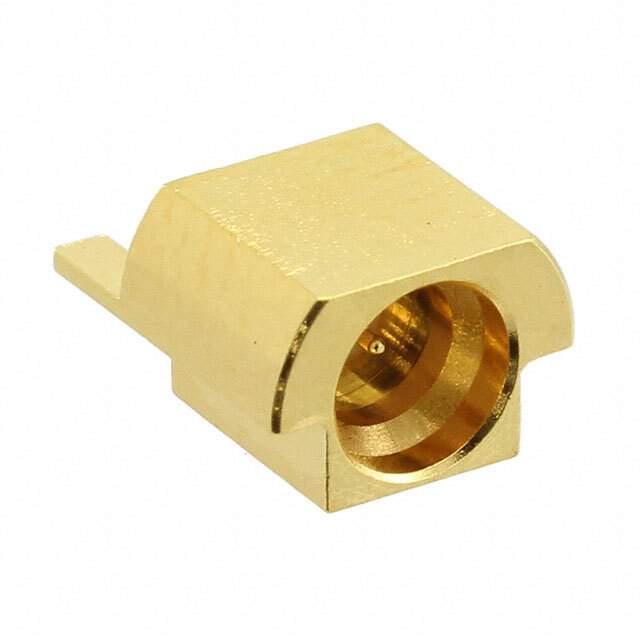

SMP-MSFD-PCE-1 Real Image
Same model may have multiple batches, images only for reference.

SMP-MSFD-PCE-1

Part No SMP-MSFD-PCE-1
Manufacturer Amphenol
Catalog Coaxial Connectors (RF) - Assemblies
Description CONN SMP JACK STR 50OHM EDGE MNT / SMP Connector Jack, Male Pin 50Ohm Board Edge, Cutout; Surface Mount Solder
Datasheet
SMP-MSFD-PCE-1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Coaxial Connectors (RF) - Coaxial Connector (RF) Assemblies
Mfr Amphenol RF
Package Tape & Reel
Connector Style SMP
Connector Type Jack, Male Pin
Contact Termination Solder
Shield Termination Solder
Impedance 50Ohm
Mounting Type Board Edge, Cutout; Surface Mount
Fastening Type Snap-On
Frequency - Max 18 GHz
Number of Ports 1
Features Full Detent
Housing Color Gold
Center Contact Material Beryllium Copper
Body Material Beryllium Copper
Body Finish Gold
Center Contact Plating Gold
Dielectric Material Polytetrafluoroethylene (PTFE)
Temperature Range - Operating -65°C ~ 165°C
Mating Cycles 500
Base Product Number SMP-MSFD
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4010
California Prop 65 Warning Information
Win Source Part Number 1337466-SMP-MSFD-PCE-1
Ultra Librarian 3D Model Ultra Librarian SMP-MSFD-PCE-1 CAD Model

Description

The Amphenol RF SMP full detent male pin jack connector assembly is a high-performance connector that is designed for use in electronic devices that require high-frequency signals.

  • Fastening Type: Snap-On
  • Mounting Type: Board Edge, Cutout, Surface Mount
  • Body Material: Beryllium Copper
  • Frequency - Max: 18 GHz
  • Impedance: 50Ohm
  • REACH: Affected
  • California Prop 65: Yes
