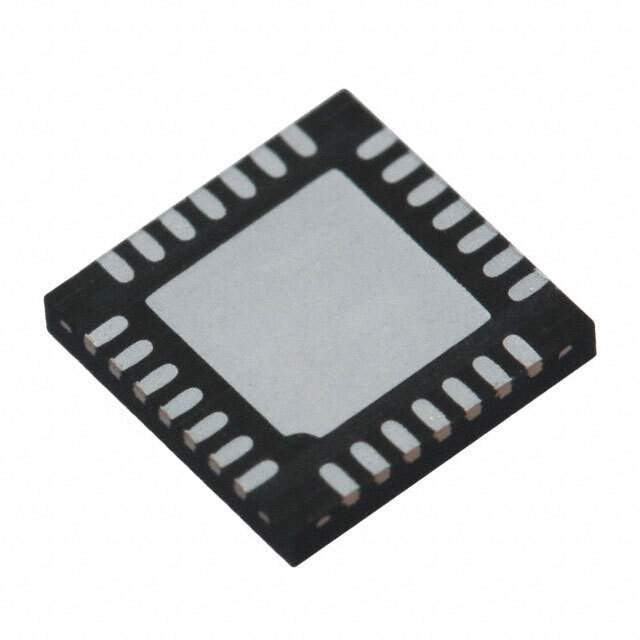

AS1113-BQFR Real Image
Same model may have multiple batches, images only for reference.

AS1113-BQFR

Part No AS1113-BQFR
Manufacturer ams
Catalog Board Mount LED Drivers
Description IC LED DRIVER LINEAR 50MA 28QFN
Datasheet
AS1113-BQFR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer ams
Packaging Tray
Type Linear
Topology Shift Register
Internal Switch(s) Yes
Number of Outputs 16
Voltage Supply MIN 3V
Voltage Supply MAX 5.5V
Voltage - Output 15V
Output Current per Channel 50mA
Frequency 50MHz
Applications Signage
Operating Temperature Range -40°C ~ 85°C (TA)
Mounting SMD
Package 28-WFQFN Exposed Pad
Manufacturer Package 28-QFN (5x5)
Win Source Part Number 768787-AS1113-BQFR
Popularity Medium
Supply and Demand Status Limited
Quantity per package 490
Ultra Librarian 3D Model Ultra Librarian AS1113-BQFR CAD Model

Description

The AS1113-BQFR is a linear LED driver IC with a shift register topology that can drive up to 16 outputs.

  • Outputs: 16
  • Current Output: 50mA per channel
  • Output Voltage: 15V
  • Voltage Supply: 3V to 5.5V
  • Topology: Shift Register
  • Features: Internal Switch
  • Package Type: 28-QFN (5x5)
  • Frequency: 50MHz
  • Mounting: Surface Mount
  • Applications: Signage
