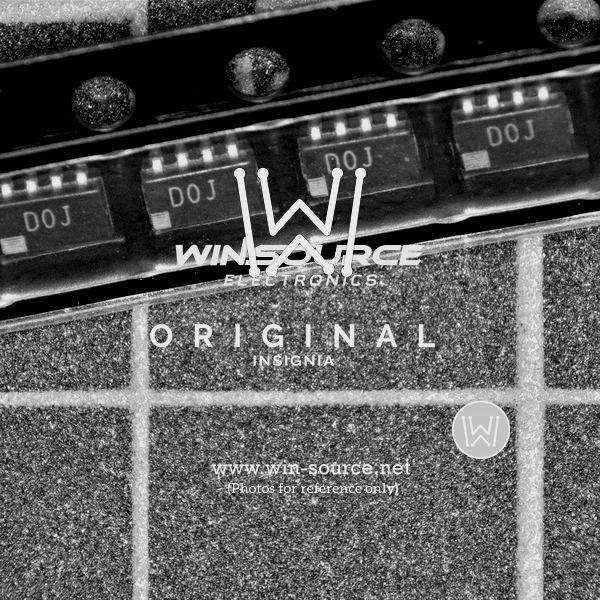

Analog Devices Inc. AD5245BRJZ50 Digital Potentiometer

The AD5245BRJZ50 by Analog Devices Inc. is a precision digital potentiometer that offers a compact and high-performance solution for a wide array of applications requiring variable resistance adjustments. This device is part of Analog Devices' renowned portfolio of digital potentiometers which are designed to provide reliable and accurate control of voltage and current in electronic circuits.

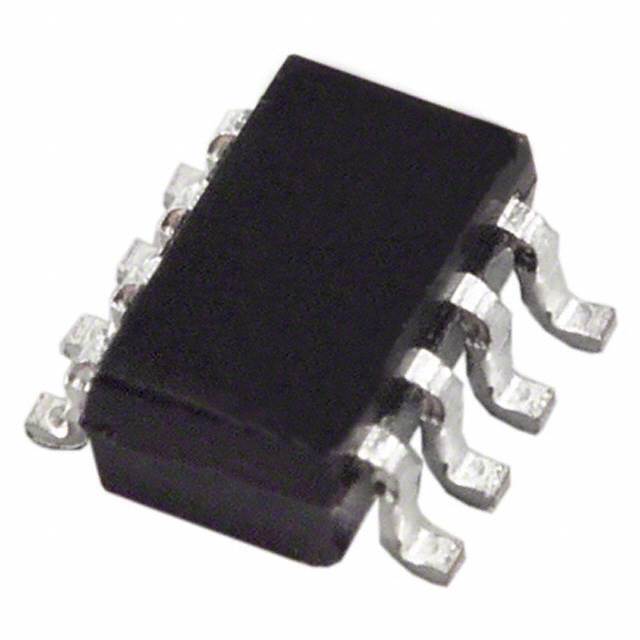

This particular model, the AD5245BRJZ50, features a single-channel, 256-position potentiometer with an end-to-end resistance of 50 kOhms. It is housed in a compact 8-lead SOT-23 package, making it an excellent choice for space-constrained applications. The digital interface of the device is I2C-compatible, allowing for easy integration into a digital system and facilitating communication with microcontrollers and other digital hardware.

The AD5245BRJZ50 is characterized by its low temperature coefficient and stable operation over a wide voltage range, which ensures consistent performance across various environmental conditions. Its non-volatile memory ensures that the resistance setting is maintained even when the power is removed, providing a reliable start-up configuration upon power-up.

Applications for the AD5245BRJZ50 are diverse and include adjustable power supplies, LCD screen calibration, and audio control systems. Its precision adjustment capabilities make it an ideal choice for fine-tuning system performance or replacing mechanical potentiometers that are prone to wear and tear over time.

Key features of the AD5245BRJZ50 include:

• Single-channel, 256-position adjustment
• 50 kOhms end-to-end resistance
• I2C-compatible digital interface
• Low temperature coefficient for stable operation
• Non-volatile memory retains settings
• Compact 8-lead SOT-23 package

Overall, the AD5245BRJZ50 from Analog Devices Inc. is a robust and precise digital potentiometer that offers electronic designers a versatile tool for implementing adjustable resistance in their circuits, ensuring high accuracy and reliability in their end products.
