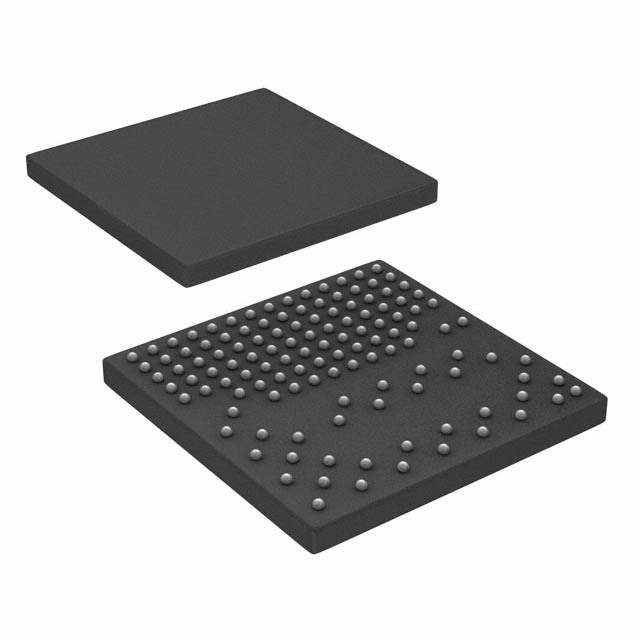

The AD5535ABC from Analog Devices Inc. is a state-of-the-art, 32-channel, 14-bit high voltage digital-to-analog converter (DAC) that is designed to meet the rigorous demands of precision control applications. This product is particularly well-suited for use in medical imaging systems, industrial process controls, and other equipment requiring multiple output high voltage programmability.

Key Features:

• High Channel Density: The AD5535ABC boasts 32 independent DAC channels in one compact package, making it ideal for systems that require multiple high voltage outputs without sacrificing board space.
• Resolution: With a 14-bit resolution, this DAC offers fine-grain control over output voltages, providing the precision needed for critical applications.
• High Output Voltage Range: Each channel can output voltages up to 200 V, with a 300 V compliance voltage, catering to a wide range of high voltage applications.
• Integrated Boost Converter: The built-in boost converter simplifies power supply design by generating the necessary high voltage for the DAC outputs from a lower voltage supply.
• Flexible Interface: A serial peripheral interface (SPI) allows for easy communication with microcontrollers or digital signal processors, making system integration a breeze.
• Thermal Protection: The device includes overtemperature protection, ensuring reliable operation under varying environmental conditions.

Applications:

• Medical Imaging Systems (e.g., MRI, CT scanners)
• Automated Test Equipment (ATE)
• Piezoelectric Actuator Drives
• Industrial Process Controls

The AD5535ABC is a testament to Analog Devices Inc.'s commitment to providing high-performance, reliable, and versatile integrated circuits. Whether for precise medical instrumentation or robust industrial automation, the AD5535ABC delivers the functionality and quality expected from a leading semiconductor manufacturer.

For more information, datasheets, and support resources, please visit the Analog Devices Inc. website.
