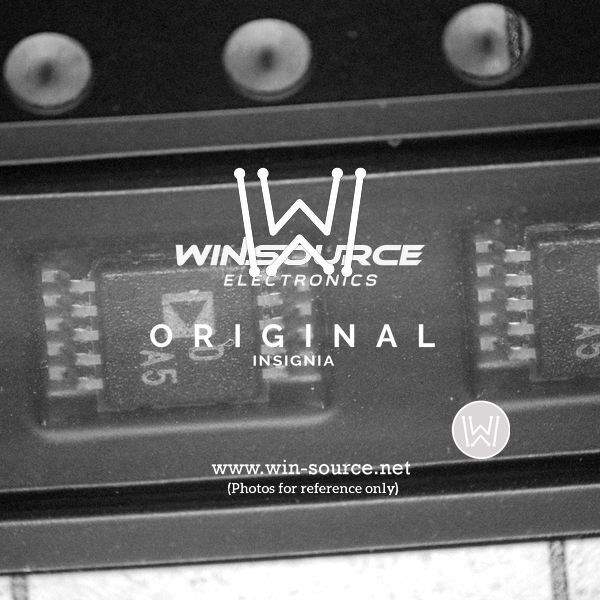

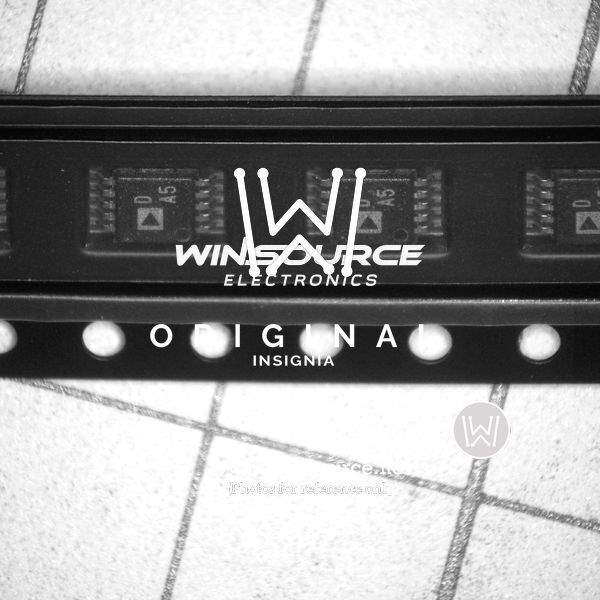

The AD5667RBRMZ-1, from Analog Devices Inc., is a high-precision dual 16-bit digital-to-analog converter (DAC) designed to deliver exceptional performance in a compact package. This device is part of the nanoDAC® series, which is renowned for providing highly accurate and low power conversion solutions suitable for a wide range of applications.

Key Features:

• Resolution: The AD5667RBRMZ-1 offers a 16-bit resolution, ensuring high precision in the analog output.
• Dual DAC Channels: This component features two independent DAC channels, which can be programmed through a serial interface.
• Integrated Reference: It comes with an on-chip 2.5 V, 2 ppm/°C reference, which reduces the need for external components and simplifies the design.
• Power Efficiency: Operating in the range of 2.7 V to 5.5 V, this DAC is optimized for low power consumption, making it ideal for battery-powered devices and portable equipment.
• Interface: The device includes a user-friendly I²C-compatible serial interface that supports standard (100 kbps), fast (400 kbps), and high-speed (3.4 Mbps) operation modes.
• Compact Size: Encased in a 10-lead MSOP (Mini Small Outline Package), the AD5667RBRMZ-1 is designed for space-constrained applications.
• Temperature Range: It operates over an extended industrial temperature range of -40°C to +125°C, ensuring reliability under varying environmental conditions.

Applications:

The AD5667RBRMZ-1 is versatile and can be used in a variety of applications, including:

• Process Control
• Data Acquisition Systems
• Portable Battery-Powered Instruments
• Digital Gain and Offset Adjustment
• Programmable Voltage and Current Sources
• Automotive Systems

In summary, the AD5667RBRMZ-1 is a feature-rich, dual 16-bit DAC that offers excellent performance in a small footprint. With its integrated reference, low power operation, and robust temperature range, it is an ideal solution for engineers looking to add precision analog output capabilities to their designs.
