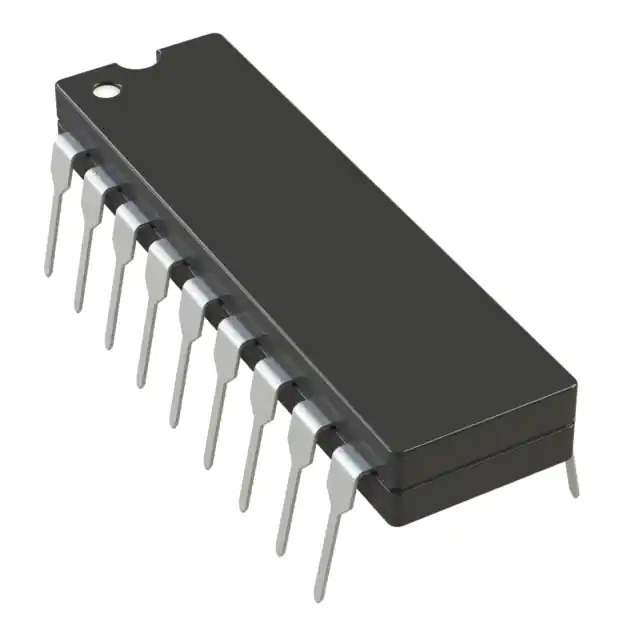

Product Overview: AD630KN from Analog Devices Inc.

The AD630KN is a high precision, balanced modulator/demodulator that combines a flexible commutating architecture with the accuracy and temperature stability afforded by laser wafer trimmed thin-film resistors. Engineered by the renowned Analog Devices Inc., this integrated circuit is designed to handle demanding signal processing tasks with ease, making it an ideal choice for a wide range of applications, including synchronous detection, phase detection, quadrature detection, and amplitude modulation.

Key Features

• Precision Phase Detection: The AD630KN provides a high level of precision in phase detection, offering excellent phase accuracy and stability over time and temperature variations.
• High Linearity: With an impressive linearity of 0.1% maximum nonlinearity, the AD630KN ensures accurate signal processing for both modulation and demodulation functions.
• Wide Dynamic Range: The device boasts a dynamic range of 90 dB, enabling it to handle a broad spectrum of signal amplitudes without compromising performance.
• Low Noise: The low noise performance of the AD630KN minimizes signal distortion and ensures the integrity of the output signal.
• Adjustable Gain and Phase: Users can fine-tune the gain and phase characteristics to suit specific application requirements, providing a high degree of flexibility and control.
• On-Chip Reference Oscillator: The inclusion of an on-chip reference oscillator simplifies the design process by reducing the need for external components.

Applications

The versatility of the AD630KN makes it an excellent choice for a variety of applications, including:

• Data acquisition systems
• Amplitude and phase modulation systems
• Vibration analysis and control
• Synchronous detection schemes
• Complex demodulation systems
• Signal recovery and noise reduction systems

The AD630KN comes in a robust package that ensures reliable performance even in harsh environmental conditions. With its exceptional precision and versatility, the AD630KN from Analog Devices Inc. is the go-to solution for professionals seeking a high-quality balanced modulator/demodulator for their signal processing needs.
