The AD7545AQ is a precision, monolithic, 12-bit, multiplying digital-to-analog converter (DAC) engineered by Analog Devices Inc. This high-performance component is designed to deliver exceptional accuracy and stability, making it an ideal choice for a wide range of applications, including process control systems, digital signal processing, and precision instrumentation.

Key Features

• Resolution: The AD7545AQ boasts a 12-bit resolution, providing fine granularity for digital-to-analog conversion, which is essential for applications requiring high precision.
• Linearity: With its excellent integral nonlinearity (INL) of ±1 LSB, the device ensures accurate and consistent performance across the entire output range.
• Settling Time: The DAC features a fast settling time, enabling quick response to changes in the input data, which is crucial for dynamic systems.
• Output Range: It offers a versatile output range that can be configured to match the needs of the specific application, providing additional flexibility to system designers.
• Power Supply: The device operates on a +5V to +15V power supply, making it compatible with a variety of digital systems and simplifying power management.

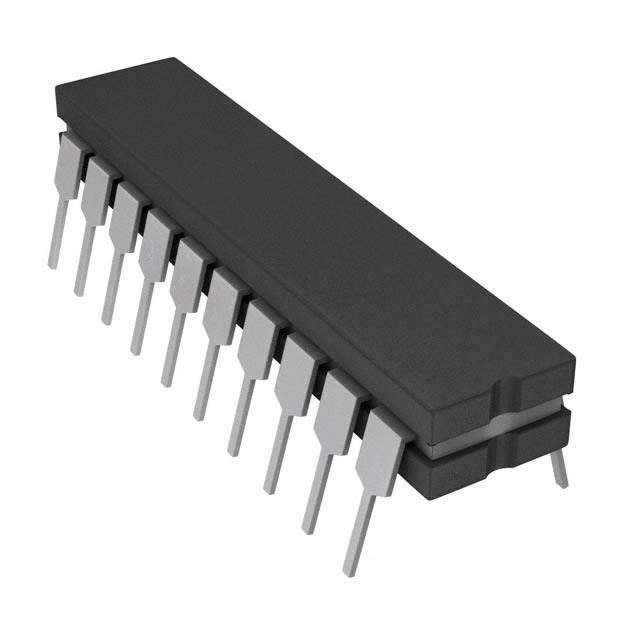

• Package: The AD7545AQ is available in a 20-pin CERDIP package, which ensures robustness and reliability, as well as ease of integration into existing designs.

Applications

The AD7545AQ is suited for a range of precision applications, including:

• Automated test equipment
• Industrial control systems
• Data acquisition systems
• Digital signal processing
• Medical instrumentation

Quality and Reliability

Analog Devices Inc. is known for its commitment to quality, and the AD7545AQ is no exception. It is built to meet stringent industry standards, ensuring long-term reliability and performance in critical applications. Its robust design and rigorous testing protocols make it a trusted component for engineers looking to enhance the accuracy and precision of their digital-to-analog conversions.

For detailed technical specifications, application notes, and support resources, please visit the Analog Devices Inc. website or contact their customer support team.
