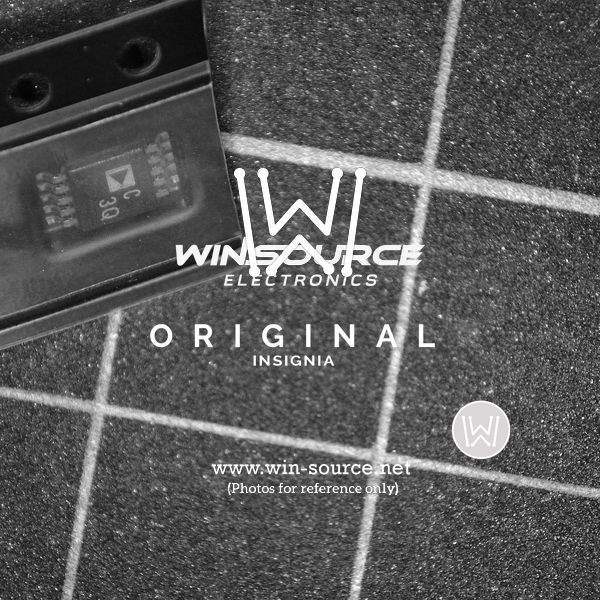

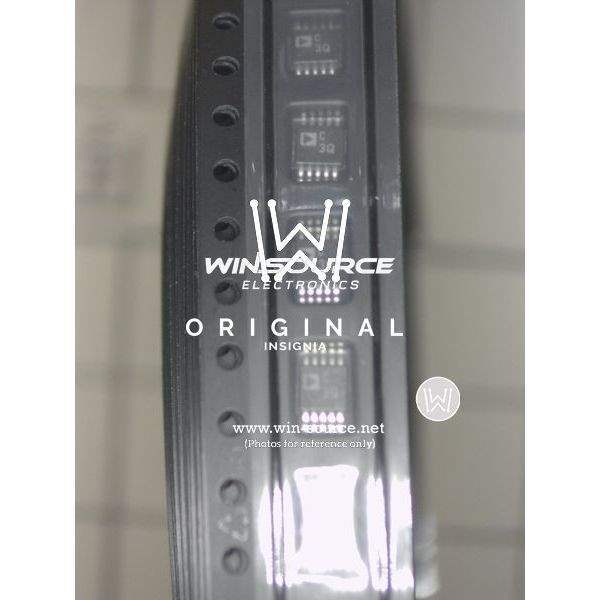

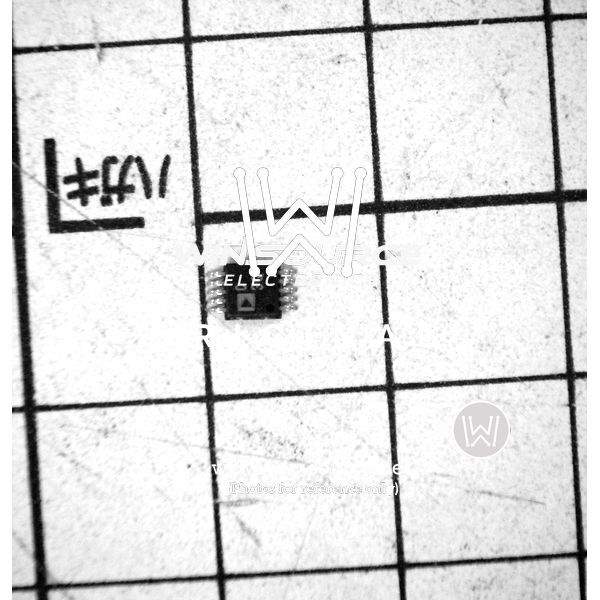

Product Overview: AD7687BRMZ by Analog Devices Inc.

The AD7687BRMZ is a high-performance, 16-bit successive approximation register (SAR) analog-to-digital converter (ADC) manufactured by Analog Devices Inc., a leader in high-performance analog, mixed-signal, and digital signal processing integrated circuits. This compact, micropower data acquisition component is designed for applications where space and power efficiency are at a premium, without compromising on precision and performance.

Key Features

• Resolution: 16-bit SAR ADC with no missing codes.
• Sampling Rate: Offers a throughput rate of up to 100 kSPS.
• Input Type: Pseudo-differential unipolar input.
• Reference: Internal 2.5 V reference with a 4 ppm/°C temperature coefficient.
• Power Consumption: Low power operation with 2.3 V to 5.5 V power supply range, featuring a typical supply current of only 1 mA.
• Interface: User-friendly SPI-compatible serial interface that supports daisy-chaining for multi-device communication.
• Package: Supplied in a compact 10-lead MSOP (Mini Small Outline Package) that is ideal for space-constrained applications.

Applications

The AD7687BRMZ is versatile and can be used in a wide array of applications, including:

• Battery-powered devices
• Data acquisition systems
• Medical instruments
• Industrial control systems
• Instrumentation and automation

Technical Specifications

The device boasts an impressive signal-to-noise ratio (SNR) and low distortion characteristics, ensuring accurate signal conversion for critical applications. It operates over the industrial temperature range of -40°C to +85°C, making it reliable in various environmental conditions.

Ordering Information

The AD7687BRMZ is available for order under the specified model number. For detailed technical documentation, application notes, and support, visit the Analog Devices website or contact their customer service for assistance.
