The AD8151AST is a high-performance digital crosspoint switch designed by Analog Devices Inc., a company renowned for its expertise in high-speed integrated circuits. This device is part of their comprehensive portfolio of products that cater to a wide range of applications, including telecommunications, data communications, and instrumentation.

Key Features

• High-Speed Switching: The AD8151AST is capable of operating at very high speeds, with a bandwidth that supports data rates up to 2.5 Gbps per port, making it suitable for high-speed signal routing applications.
• Configurable Ports: This crosspoint switch offers 15 differential PECL-/CML-compatible inputs and 15 outputs, which can be configured in various array sizes such as 15x15, allowing for flexible signal routing configurations.
• Low Crosstalk: Designed with low crosstalk characteristics, the AD8151AST ensures minimal interference between signals, which is critical for maintaining signal integrity in dense routing environments.
• Programmable: The device can be programmed via a serial or parallel interface, providing users with control over the crosspoint configuration and the ability to adapt to different system requirements.
• Power Efficiency: With a low power consumption profile, the AD8151AST is ideal for power-sensitive applications, contributing to overall system efficiency.

Applications

The AD8151AST is designed for a variety of applications that require high-speed data routing and switching, such as:

• ATM and Gigabit Ethernet switches
• Backplane switching
• Base station infrastructure
• High-speed ATE (Automatic Test Equipment)
• Video switching and broadcast equipment

Quality and Reliability

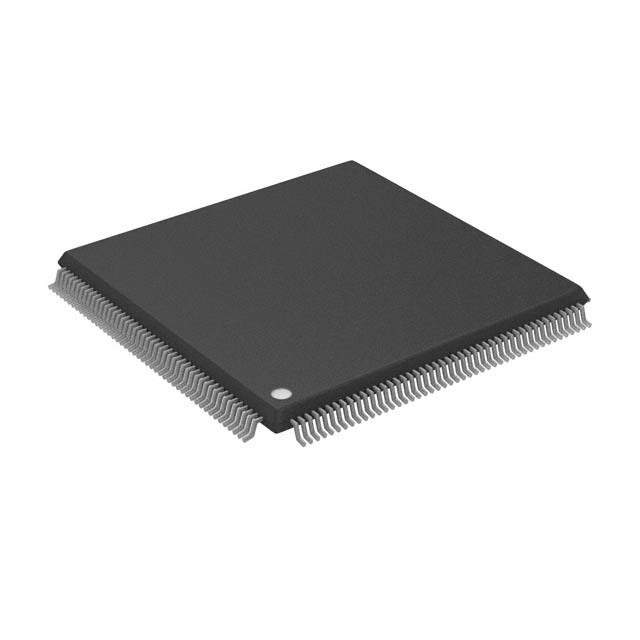

Analog Devices Inc. ensures that the AD8151AST meets the highest quality and reliability standards. The device is available in a compact 80-lead LQFP (Low-profile Quad Flat Package) that is suitable for space-constrained applications, while also providing robustness for industrial-grade performance.

With its combination of high-speed performance, configurability, and low power consumption, the AD8151AST from Analog Devices Inc. stands out as a versatile solution for complex digital signal routing challenges in modern electronic systems.
