Product Overview: AD8324ACPZ-REEL7

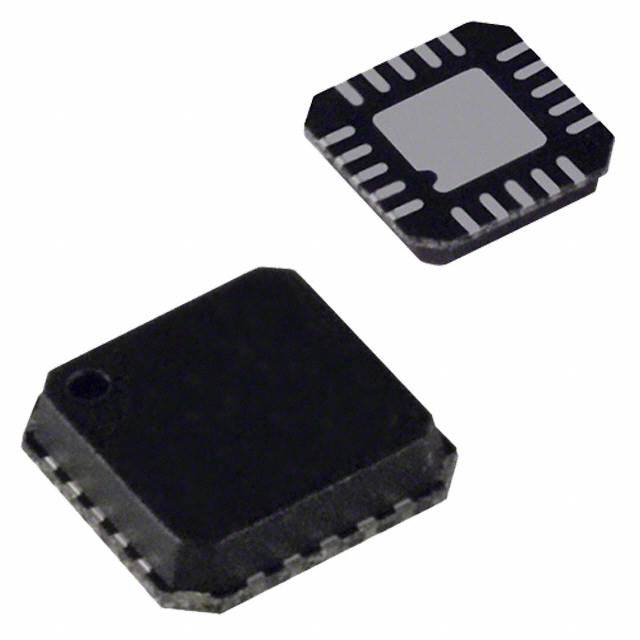

The AD8324ACPZ-REEL7 is a robust, high-performance variable gain amplifier (VGA) designed and manufactured by Analog Devices Inc., a leader in high-performance analog technology. This particular device comes in a compact 24-lead LFCSP (Lead Frame Chip Scale Package) and is supplied on a 7-inch reel, making it suitable for automated assembly processes used in high-volume production environments.

Key Features

• Adjustable Gain Control: The AD8324ACPZ-REEL7 offers a precise gain control range of 0 to 39.75 dB, which can be adjusted via a serial digital interface. This feature allows for flexibility and fine-tuning in various applications.
• High Linearity: With a high third-order intercept point (IP3), the device ensures excellent linearity, which is critical for maintaining signal integrity in communication systems.
• Low Noise Figure: The low noise figure of the AD8324ACPZ-REEL7 minimizes additional noise, preserving the quality of the signal throughout the amplification process.
• Power Efficiency: The device operates with a single 5 V supply, which contributes to its power-efficient design, making it suitable for portable and battery-powered applications.

Applications

The AD8324ACPZ-REEL7 is versatile and can be used in a wide range of applications, including:

• Cable modems and xDSL modems
• Fiber-optic receivers
• Base station infrastructure
• IF and RF applications
• General-purpose AGC circuits

Quality and Reliability

Analog Devices Inc. is known for its commitment to quality and reliability. The AD8324ACPZ-REEL7 is built to meet high standards, ensuring stable performance over its operational lifespan. Additionally, the device is RoHS compliant, adhering to environmental regulations and promoting sustainability in electronic components.

Technical Specifications

Before incorporating the AD8324ACPZ-REEL7 into your design, it's essential to review its detailed technical specifications, including input/output impedance, bandwidth, thermal characteristics, and more. Analog Devices provides comprehensive datasheets and technical support to assist with integration and to maximize the potential of this advanced VGA.
