Product Overview: AD9689BBPZ-2000 by Analog Devices Inc.

The AD9689BBPZ-2000 is a high-performance, 14-bit analog-to-digital converter (ADC) designed by Analog Devices Inc., a leader in the semiconductor industry. This ADC offers an impressive sampling rate of up to 2000 MSPS (Mega-Samples Per Second), providing exceptional data acquisition capabilities for demanding applications that require high bandwidth and dynamic range.

Featuring a flexible JESD204B serial interface, the AD9689BBPZ-2000 is optimized for signal processing tasks such as radar, satellite communication systems, and medical imaging equipment. This interface simplifies the data connection to modern FPGAs and DSPs, enabling efficient system integration and high-speed data transfer.

Key Features:

• High Sampling Rate: With a maximum sampling rate of 2000 MSPS, the AD9689BBPZ-2000 captures high-frequency signals with precision, making it ideal for advanced RF applications.
• Resolution: The 14-bit resolution ensures fine quantization levels, resulting in detailed and accurate digital representations of the input signals.
• Input Bandwidth: The device supports a wide analog input bandwidth, accommodating a broad range of signal frequencies.
• JESD204B Interface: The high-speed serial interface provides a seamless connection to digital processors, reducing the number of data I/O lines and simplifying PCB layout.
• Power Efficiency: Designed with power efficiency in mind, the AD9689BBPZ-2000 minimizes power consumption without compromising performance, which is crucial for thermal management and reliability in high-density systems.

Applications:

• Radar and satellite communication systems
• Medical imaging devices such as MRI and CT scanners
• High-speed data acquisition systems
• Test and measurement equipment
• Wireless infrastructure

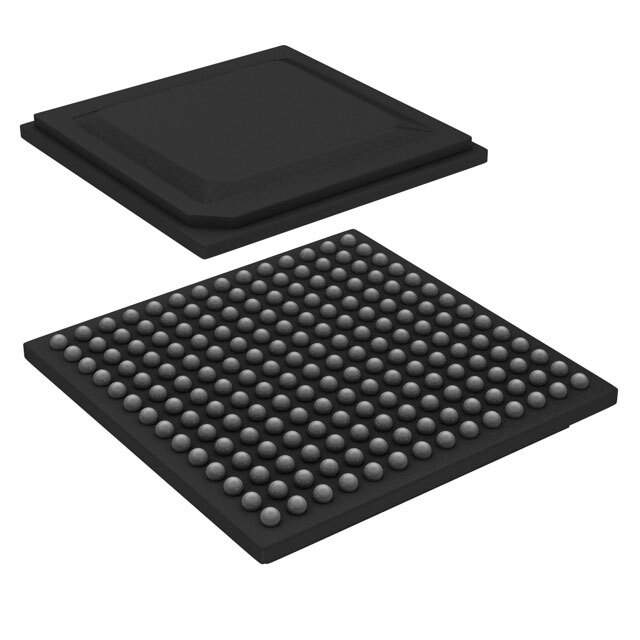

The AD9689BBPZ-2000 is housed in a compact, Pb-free, 144-ball BGA_ED package, ensuring a small footprint and ease of mounting in space-constrained designs. With its advanced features and robust performance, the AD9689BBPZ-2000 is a standout ADC solution for professional-grade electronics that demand high-speed, high-fidelity data conversion.
