The AD9789BBCZ is a state-of-the-art, high-performance radio frequency digital-to-analog converter (RF DAC) developed by Analog Devices Inc., a leader in high-performance semiconductors for signal processing applications. This device is designed to cater to the demanding needs of communication systems that require high dynamic range and bandwidth capabilities.

Key Features:

• High Dynamic Range: The AD9789BBCZ boasts an impressive dynamic range, making it ideal for complex modulation schemes and multi-carrier generation.
• Wide Bandwidth: With a capability to support a wide bandwidth, this RF DAC is suitable for a variety of broadband applications, including cable modem termination systems and wireless infrastructure.
• High Data Rate: The device supports high data rates, enabling it to keep up with the increasing speed requirements of modern communication systems.
• Mix-Mode Operation: It features a mix-mode operation that allows for both baseband and IF (Intermediate Frequency) sampling, providing flexibility in system design.
• Programmable Interpolation Filters: The inclusion of programmable interpolation filters helps in shaping the output spectrum, thus reducing the complexity of external filtering requirements.

Applications:

The AD9789BBCZ is versatile and can be used in a variety of applications including:

• Wireless communications infrastructure
• Cable modem termination systems
• Instrumentation and automated test equipment
• Broadband data and video systems

Technical Specifications:

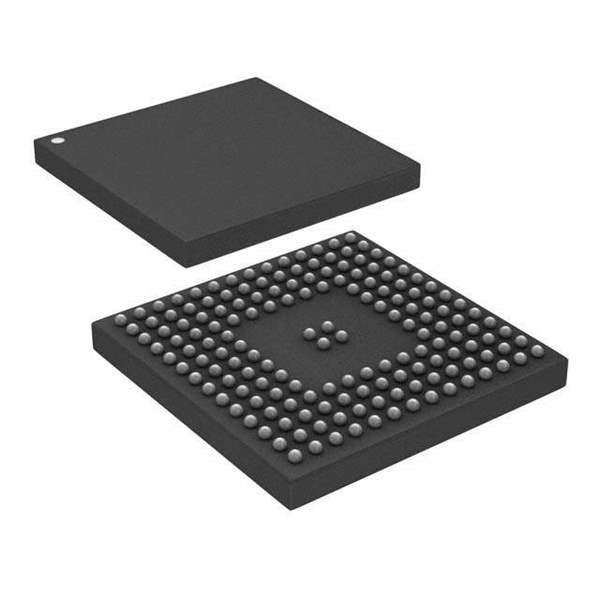

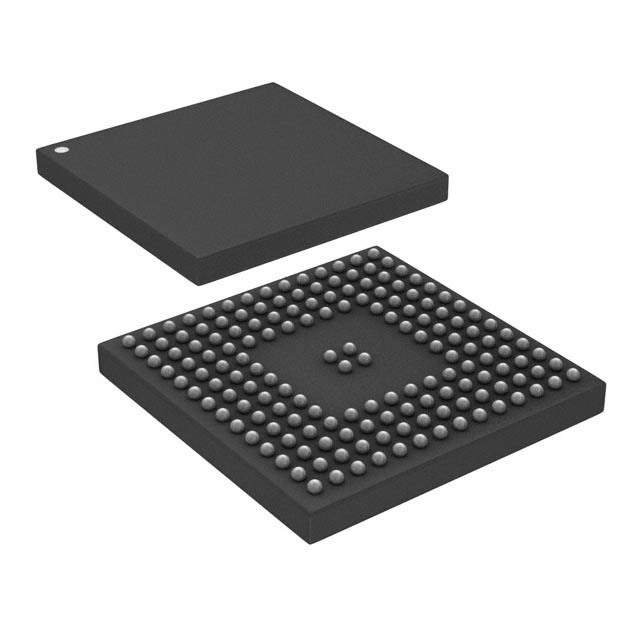

The device comes in a compact 144-ball chip-scale ball grid array (CSP_BGA) package, making it suitable for space-constrained applications. It operates over an industrial temperature range and requires a single 1.8V power supply for the digital interface, with separate supply voltages for the analog and digital circuitries.

With its advanced features and high-level performance, the AD9789BBCZ from Analog Devices Inc. is an excellent choice for designers looking to implement a high-quality RF DAC solution in their communication systems.
