Analog Devices ADA4433-1WBCPZ-R2 Differential Amplifier

The ADA4433-1WBCPZ-R2 is a high-performance, fully integrated video differential amplifier designed by Analog Devices Inc. This component is specifically tailored to provide a complete solution for driving analog video signals over twisted pair cables or differential lines. It is an ideal choice for applications that require excellent video quality with minimal design complexity.

The ADA4433-1WBCPZ-R2 features a fixed gain of 2, which simplifies the design process by eliminating external gain-setting components. This integrated circuit is optimized for differential signaling, which is essential for reducing the effects of common-mode noise and improving signal integrity over long cable runs. The device supports a wide range of video standards, including NTSC, PAL, and SECAM, making it versatile for various video applications.

One of the key benefits of the ADA4433-1WBCPZ-R2 is its low power consumption, which makes it suitable for power-sensitive designs. The amplifier operates on a single 3.3V power supply, further simplifying power management within the system. Additionally, the device features a power-down mode, allowing further power savings when the amplifier is not in use.

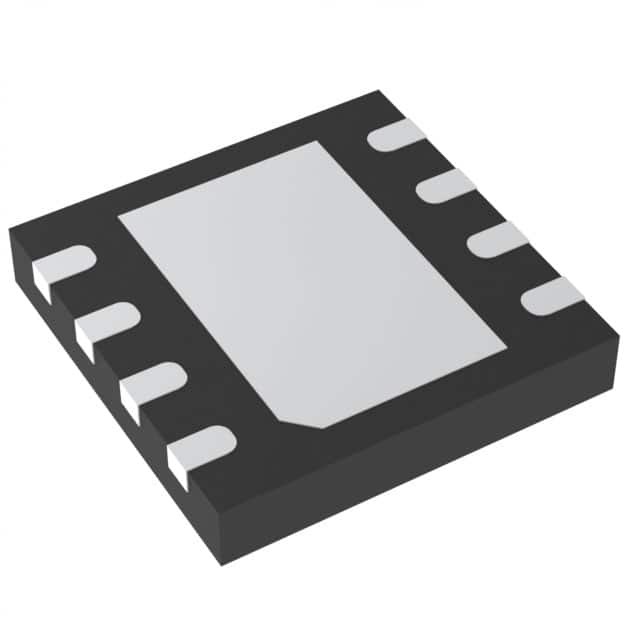

The ADA4433-1WBCPZ-R2 comes in a compact 8-lead LFCSP package, which is designed to minimize space on the PCB. This small footprint, combined with the integrated ESD protection and internal filters, reduces the need for additional components and simplifies the overall design.

Engineers looking for a reliable solution for video signal amplification will find the ADA4433-1WBCPZ-R2 to be a robust choice. Its integrated features and ease of use make it an excellent component for applications in video surveillance, automotive infotainment systems, video broadcasting equipment, and any other system that requires high-quality video transmission over differential lines.

For more detailed specifications and application notes, designers are encouraged to consult the comprehensive datasheet provided by Analog Devices Inc. This will ensure the ADA4433-1WBCPZ-R2 is utilized to its full potential within their electronic designs.
