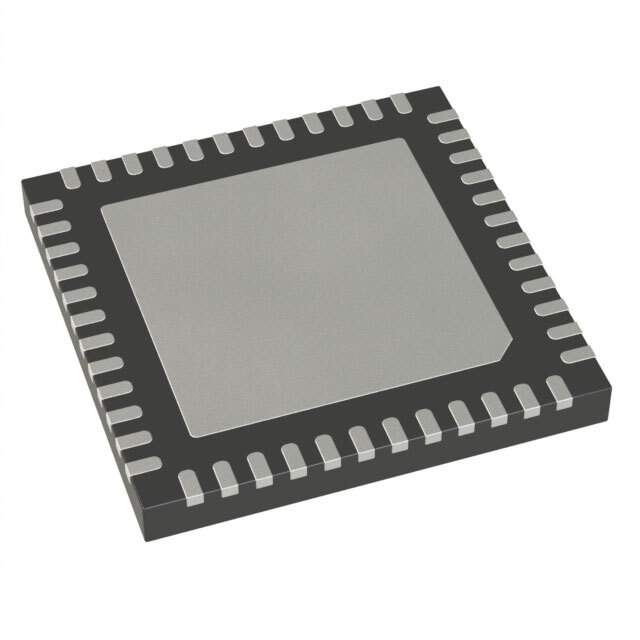

Manufactured by Analog Devices Inc., the ADF7020-1BCPZ-RL7 is a state-of-the-art, low power, integrated transceiver designed for robust and efficient wireless communication. This versatile transceiver is an ideal choice for a wide range of applications in the industrial, medical, and consumer sectors, including automatic meter reading, home and building automation, wireless sensor networks, and security systems.

Key Features

• Frequency Range: The ADF7020-1 operates in the VHF and UHF bands, supporting a wide range of frequencies which makes it suitable for various global communication standards.
• Programmable Output Power: It offers a programmable output power range, enabling it to adapt to different power requirements for various applications.
• Low Power Consumption: Designed with power efficiency in mind, it is optimized for battery-powered devices, helping to extend the operational life of the product.
• Integrated Data Handling: The device includes an integrated packet handler, FEC (Forward Error Correction), and CRC (Cyclic Redundancy Check) capabilities, which are crucial for reliable data communication.
• Modulation: It supports a variety of modulation schemes including 2-FSK, 3-FSK, 4-FSK, GFSK, OOK, and GOOK, giving designers flexibility in optimizing for performance and power consumption.

Product Specifications

Parameter Value Part Number ADF7020-1BCPZ-RL7 Manufacturer Analog Devices Inc. Package/Case 48-VFQFN Exposed Pad, CSP Frequency Band VHF, UHF Supply Voltage 2.3 V to 3.6 V Operating Temperature -40°C to +85°C Data Interface Serial

Applications

• Automatic Meter Reading (AMR)
• Home and Building Automation
• Wireless Sensor Networks
• Security Systems

The ADF7020-1BCPZ-RL7 by Analog Devices Inc. is a compelling choice for designers seeking a reliable, flexible, and power-efficient wireless communication solution. Its robust feature set ensures that it can meet the demands of a variety of complex wireless applications.
