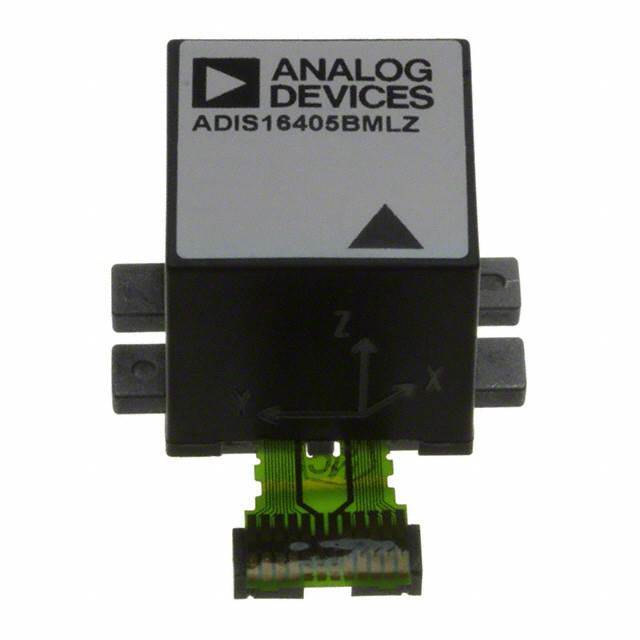

ADIS16405BMLZ - Precision Tri-Axis Inertial Sensor

The ADIS16405BMLZ is a high-performance, precision inertial sensor from Analog Devices Inc. that offers a complete inertial system incorporating multiple MEMS sensors. This compact module includes a tri-axis gyroscope, a tri-axis accelerometer, and a tri-axis magnetometer, along with pressure sensor capabilities, all in a single package. Designed to provide stable and reliable performance in a variety of applications, the ADIS16405BMLZ is an excellent choice for platform stabilization, navigation, robotics, and motion analysis.

Key Features

• Tri-Axis Gyroscope: With a wide dynamic range and excellent vibration rejection, the gyroscope provides precise rotational rate sensing.
• Tri-Axis Accelerometer: Measures linear acceleration in three dimensions, enabling accurate motion tracking and tilt sensing.
• Tri-Axis Magnetometer: Senses magnetic fields, allowing for compass heading information and magnetic disturbance detection.
• Barometric Pressure Sensor: Enhances altitude estimation capabilities for a comprehensive understanding of the device's three-dimensional environment.
• Factory Calibrated: Each sensor in the ADIS16405BMLZ is individually calibrated for sensitivity, bias, alignment, and temperature to ensure high accuracy and performance.
• Easy Integration: The module features a simple SPI-compatible serial interface, which simplifies system connectivity and allows for straightforward integration into a wide range of systems.
• Rugged Design: Enclosed in a robust laser-welded titanium housing, the ADIS16405BMLZ is designed to withstand harsh environments and high levels of mechanical shock and vibration.
• Compact Form Factor: With its small footprint, the device is ideal for applications where space is at a premium, without compromising on the quality of inertial data.

Applications

The ADIS16405BMLZ is versatile and can be employed in various high-performance applications, including:

• Aerospace and Defense: For precision guidance, navigation, and control.
• Industrial Automation: In robotics and machinery for motion control and monitoring.
• Automotive: For vehicle dynamics, telematics, and advanced driver-assistance systems (ADAS).
• Research and Development: As a tool for motion analysis and data collection in scientific studies.

With its combination of multiple sensors, high accuracy, and ease of use, the ADIS16405BMLZ from Analog Devices Inc. represents a comprehensive solution for advanced inertial sensing needs.
