The ADL5306ACPZ-REEL7 is a state-of-the-art logarithmic amplifier designed and manufactured by Analog Devices Inc., a leader in high-performance analog technology. This advanced component is part of the REEL7 series, offering the convenience of tape and reel packaging for automated assembly processes.

Key Features:

• Wide Dynamic Range: The ADL5306ACPZ-REEL7 boasts an impressive dynamic range of 160 dB for photodiode current, ensuring precise and reliable measurements across a broad spectrum of light intensities.
• High Bandwidth: With a bandwidth that extends from DC to 10 MHz, this logarithmic amplifier can handle high-speed signals, making it suitable for a variety of demanding applications.
• Flexible Power Supply: It operates on a single 2.7 V to 12 V power supply, providing designers with the flexibility to integrate it into different system voltage levels.
• Temperature Stability: The device maintains its performance over a wide temperature range, ensuring consistent operation under varying environmental conditions.

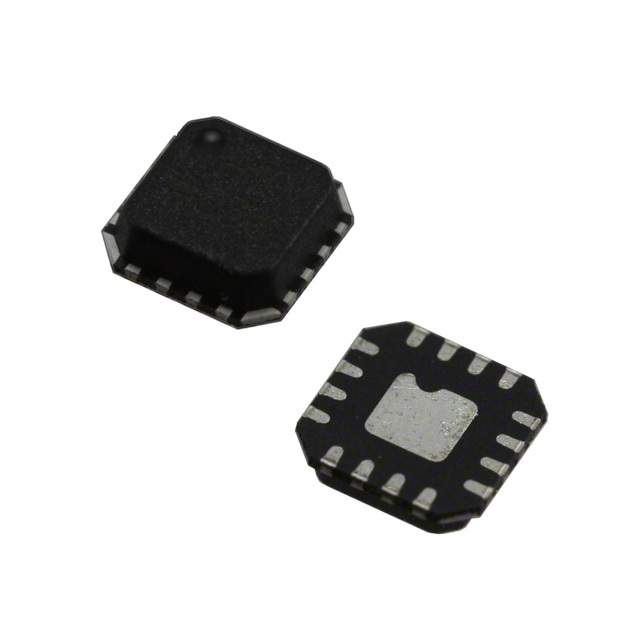

• Compact Package: Housed in a compact LFCSP (Lead Frame Chip Scale Package), the ADL5306ACPZ-REEL7 is designed for space-constrained applications.

Applications:

The ADL5306ACPZ-REEL7 is ideal for a wide range of applications, including:

• Optical power measurement
• Medical diagnostics
• Chemical analysis
• Instrumentation
• Logarithmic amplification for signal compression

Quality and Reliability:

Analog Devices Inc. is known for its commitment to quality, and the ADL5306ACPZ-REEL7 is no exception. It is produced under strict quality control measures, ensuring high reliability and performance consistency for critical applications.

Ordering Information:

The ADL5306ACPZ-REEL7 is available in tape and reel packaging, facilitating efficient handling and placement during the manufacturing process. For ordering and detailed specifications, visit the Analog Devices Inc. website or contact an authorized distributor.
