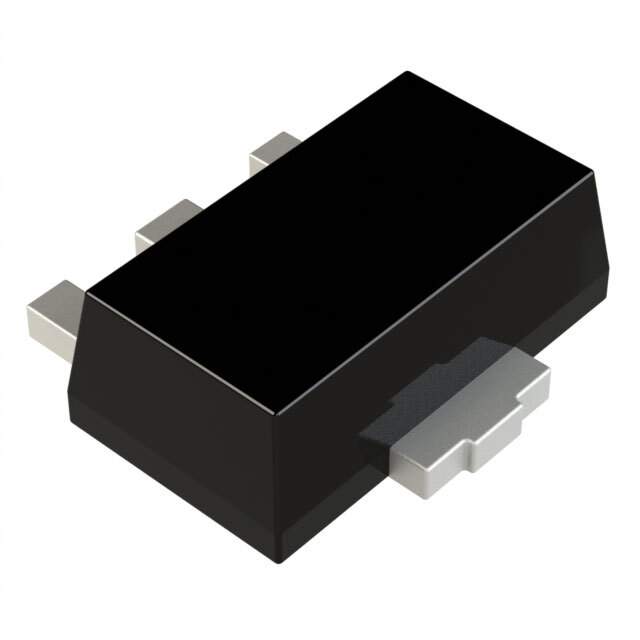

The ADL5611ARKZ is a high-performance RF/IF gain block designed by Analog Devices Inc., an industry leader in high-fidelity analog and mixed-signal processing products. This versatile component is ideal for a wide array of applications, including cellular infrastructure, satellite communications, radio link transmitters, and defense electronics.

Key Features

• Frequency Range: The ADL5611ARKZ operates over a broad frequency range from 20 MHz to 1 GHz, making it suitable for various communication bands.
• High Gain: It offers a high gain of 15.5 dB, ensuring strong signal amplification for clear and reliable signal transmission.
• Output Power: With an output power of 21.5 dBm at 1 dB compression, the device can drive a variety of RF components without the need for additional amplification stages.
• Single Supply Voltage: The gain block operates on a single 5 V supply, simplifying power supply design and reducing overall system complexity.
• Stable Performance: It provides stable performance over temperature, frequency, and power supply variations, ensuring consistent operation in diverse environments.

Applications

• Cellular Base Stations
• Wireless Infrastructure
• Test and Measurement Equipment
• Satellite Communications Systems
• General Purpose RF and IF Applications

Product Specifications

Parameter Value Manufacturer Analog Devices Inc. Part Number ADL5611ARKZ Frequency Range 20 MHz to 1 GHz Gain 15.5 dB Output Power (P1dB) 21.5 dBm Supply Voltage 5 V

For detailed information and technical specifications, designers and engineers are encouraged to consult the Analog Devices Inc. website or the ADL5611ARKZ datasheet.
