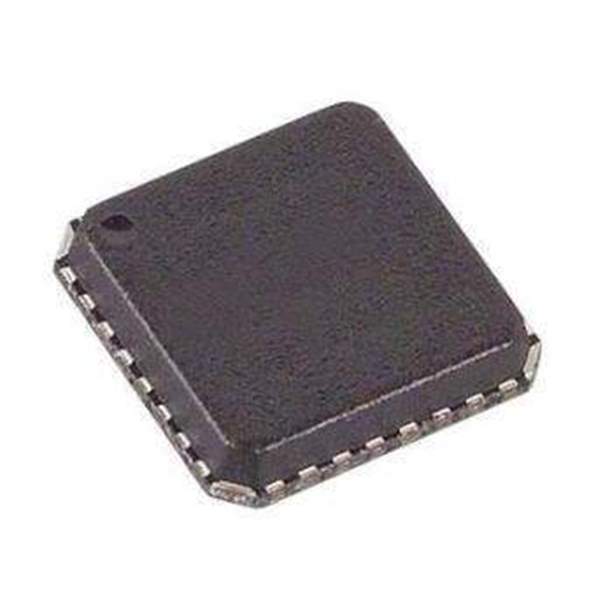

The ADL9006CHIPS is a gallium arsenide (GaAs), pseudomorphic high electron mobility transistor (pHEMT), monolithic microwave integrated circuit (MMIC), low noise amplifier that operates from 2 GHz to 28 GHz. The amplifier provides 15.5 dB of gain, 2.2 dB of noise figure, 24 dBm of output third-order intercept (IP3), 20 dBm of output saturated power (PSAT), and 19 dB of power output for 1 dB compression (P1dB) while requiring a 55 mA power supply current (IDD) from a 5 V total supply voltage. The ADL9006CHIPS is self biased with only a single positive supply needed to achieve an IDD of 55 mA.
The ADL9006CHIPS amplifier input and output are internally matched to 50 Ω facilitating integration into multichip modules (MCMs).
