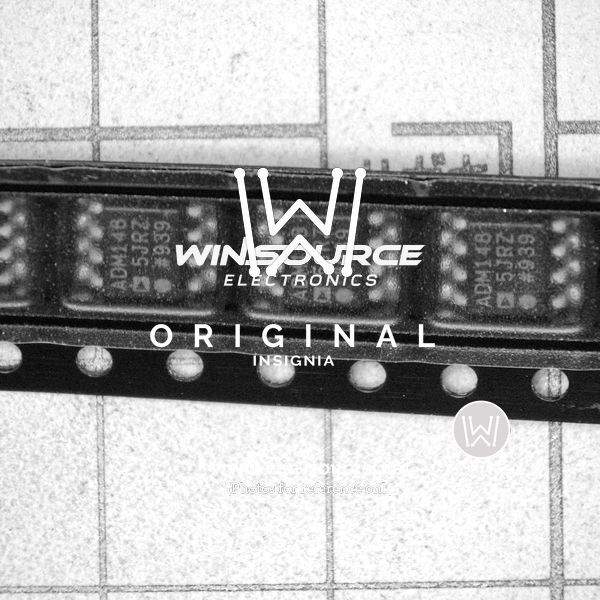

ADM1485JRZ Transceiver by Analog Devices Inc.

The ADM1485JRZ is a robust, high-speed transceiver module designed and manufactured by Analog Devices Inc., a leader in high-performance semiconductors. This transceiver is a part of the ADM485 family and is specifically engineered to facilitate bidirectional data communication on multipoint bus transmission lines. It is ideal for balanced transmission lines and complies with the EIA-485 standard, making it a suitable choice for industrial and commercial applications that require reliable data transmission over long distances and in noisy environments.

The ADM1485JRZ operates with a single 5V power supply and features a differential line driver and receiver that offers half-duplex communication. This allows for the transmission of data up to 5 Mbps, making it not only reliable but also fast. The device is characterized by its low power consumption, with an idle current typically under 600µA, thus ensuring efficiency in systems where power conservation is critical.

This transceiver comes in a compact SOIC-8 (Small Outline Integrated Circuit) package, which makes it convenient for space-constrained applications. It is designed with thermal shutdown and a driver output that is protected against excessive power dissipation by limiting the output current. Additionally, the ADM1485JRZ features a failsafe receiver that guarantees a logic high output when the inputs are open or shorted, or when they are connected to a terminated transmission line with all drivers disabled.

Key features of the ADM1485JRZ include:

• 5V power supply operation
• High data rate up to 5 Mbps
• Thermal shutdown protection
• Current limiting for driver overload protection
• Failsafe receiver for open, short, or terminated lines
• Low power consumption
• SOIC-8 packaging for compact integration

With its robust design and advanced features, the ADM1485JRZ is particularly well-suited for industrial control systems, factory automation, HVAC systems, and any other applications that require a reliable network communication protocol over RS-485/RS-422 lines. Analog Devices Inc. ensures that this transceiver meets the stringent requirements for industrial-grade components, providing a high-quality solution for your data communication needs.
