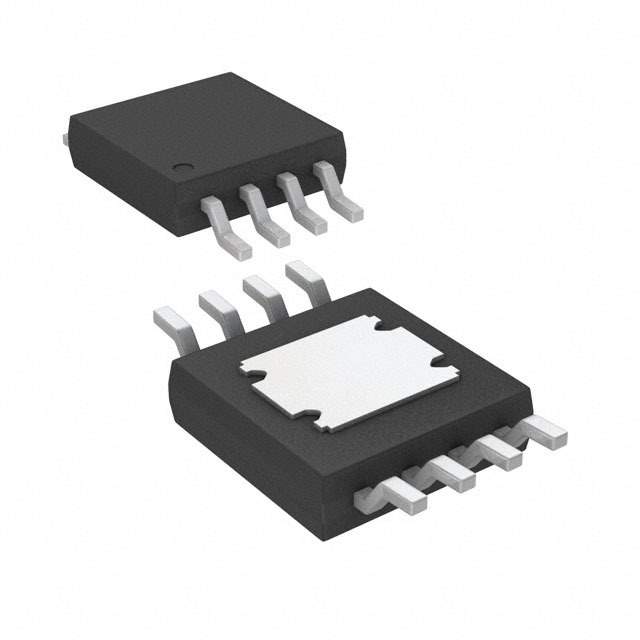

ADP125ARHZ

Part No ADP125ARHZ
Manufacturer Analog Devices Inc.
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LDO ADJ 0.5A 8MSOP
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Analog Devices Inc.
Packaging Reel - TR
Status Active
Output Type Adjustable
Number of Regulators 1
Maximum Input Voltage 5.5V
Nominal Output Voltage (Min/Fixed) 0.8V
Maximum Output Voltage 5V
Dropout Voltage-Max 0.23V @ 500mA
Output Current 500mA
Operating Supply Current 105μA to 280μA
PSRR 60dB (10kHz to 100kHz)
Control Features Enable
Protection Features Over Current, Over Temperature, Under Voltage Lockout (UVLO)
Temperature Range - Operating -40°C to 125°C
Regulator Topology Positive Adjustable
Output Voltage 0.8 V to 5 V
Voltage - Dropout (Typical) 0.13V @ 500mA
Mounting SMD (SMT)
Case / Package 8-MSOP-EP
Win Source Part Number 077647-ADP125ARHZ
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian ADP125ARHZ CAD Model

Description

ADP125ARHZ Voltage Regulator by Analog Devices Inc.

The ADP125ARHZ is a high-performance, low-dropout linear regulator from Analog Devices Inc., designed to deliver a continuous 500 mA of output current. This device is well-suited for providing stable voltage to sensitive electronics, making it an ideal choice for a wide range of applications, including portable and battery-powered equipment, medical devices, and instrumentation.

Key Features:

  • Output Current: Capable of delivering up to 500 mA of output current, the ADP125ARHZ can meet the needs of most moderate-power applications.
  • Low Dropout: The low dropout voltage allows the regulator to continue delivering a regulated output even when the supply voltage is close to the output voltage, enhancing efficiency and battery life in portable applications.
  • Wide Input Voltage Range: With an input voltage range from 2.3 V to 5.5 V, it is versatile for various circuits and battery chemistries.
  • Adjustable Output Voltage: The output voltage is adjustable from 0.8 V to 5 V, providing flexibility for different design requirements.
  • High Accuracy: Output voltage accuracy is ±1%, ensuring reliable and consistent performance for precision applications.
  • Low Quiescent Current: The ADP125ARHZ features a low quiescent current, making it suitable for battery-powered devices where power conservation is critical.
  • Thermal Overload Protection: Built-in thermal overload protection safeguards the device against excessive temperature and power dissipation.
  • Short-Circuit Protection: The regulator includes short-circuit protection, enhancing the safety and reliability of the connected components.

Package and Availability:

The ADP125ARHZ is available in a compact 8-lead SOIC package, which is conducive to space-constrained applications. The small footprint and low-profile design make it an excellent choice for sleek, modern electronic designs. Analog Devices Inc. ensures the availability of this regulator through their extensive distribution network, providing designers with ready access to this high-quality component.

Applications:

With its versatile feature set and robust performance, the ADP125ARHZ is well-suited for a variety of applications, such as powering sensitive analog and digital ICs, RF devices, and portable communication equipment. Its ability to maintain a stable voltage in dynamic conditions makes it particularly valuable in applications where supply voltage may vary, such as in battery-operated devices during the discharge cycle.
