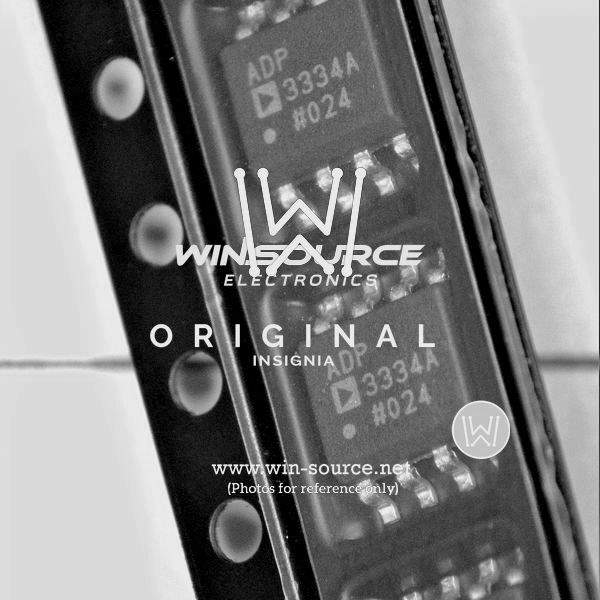

Analog Devices Inc. ADP3334ARZ Low Dropout Linear Regulator

The ADP3334ARZ is a high-performance low dropout linear regulator (LDO) from Analog Devices Inc., designed to deliver a continuous 1.5A of output current with a dropout voltage as low as 200mV at full load. This device is an excellent choice for linear power regulation in space-constrained applications, offering both high accuracy and low power dissipation.

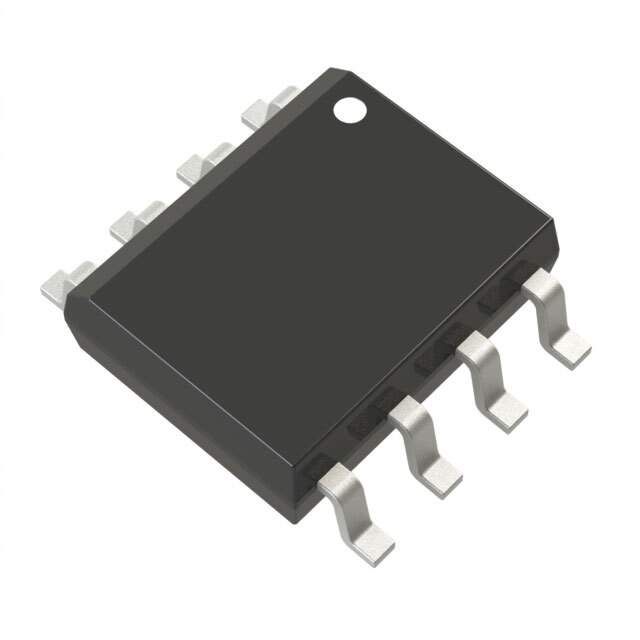

Encased in a compact SOIC-8 package, the ADP3334ARZ operates over a wide input voltage range from 2.7V to 5.5V, making it versatile for a variety of systems. This LDO is particularly well-suited for portable and battery-powered equipment, where power efficiency is critical. Its low quiescent current extends battery life, and the low dropout voltage ensures maximum battery utilization.

One of the key features of the ADP3334ARZ is its fast transient response, which is essential for maintaining a stable output voltage despite rapid changes in load. This makes it an ideal choice for high-performance microprocessors, FPGAs, and other digital ICs that demand a stable power supply. The device also includes a range of protection features such as over-current protection, thermal overload protection, and a reverse battery protection circuit, which safeguard the regulator and the load from various fault conditions.

For applications requiring precise voltage regulation, the ADP3334ARZ offers excellent load and line regulation characteristics. The output voltage is adjustable via external resistors and can be set from 1.2V to the maximum input voltage, providing flexibility for different design requirements. Additionally, the regulator features a low noise performance, which is crucial for sensitive RF and analog circuits that demand clean power supply.

Overall, the ADP3334ARZ from Analog Devices Inc. is a reliable and efficient solution for a wide range of applications where voltage regulation with minimal power loss is necessary. Its robust feature set and compact form factor make it an excellent choice for designers looking to optimize their power management systems.
