ADSP-BF512KBCZ-3: High-Performance Digital Signal Processor

The ADSP-BF512KBCZ-3 is a cutting-edge digital signal processor (DSP) from Analog Devices Inc., designed to cater to a wide range of applications requiring high-speed signal processing capabilities. This processor is part of the Blackfin family of products, known for their exceptional performance and power efficiency. The ADSP-BF512KBCZ-3 is particularly suitable for embedded applications such as automotive, industrial control systems, image processing, audio and video processing, and communications infrastructure.

Key Features:

• Core Performance: The device features a high-performance 16/32-bit Blackfin processor core with a maximum frequency of 300MHz, which enables it to execute up to 600 MMACS (Million Multiply-Accumulate operations per Second), delivering the computational power needed for demanding signal processing tasks.
• Memory: It comes with 116KB of on-chip memory, which includes 64KB of L1 instruction memory, 32KB of L1 data memory, and an additional 20KB of L2 SRAM. This internal memory is complemented by a direct memory access (DMA) controller for efficient data transfers.
• Peripheral Set: The ADSP-BF512KBCZ-3 is equipped with a rich set of peripherals, including UART, SPI, SPORT (Serial Port), and I2C interfaces for flexible communication options. It also features a real-time clock, watchdog timer, and general-purpose timers for timing-critical applications.
• Power Efficiency: Designed with power-sensitive applications in mind, the processor supports dynamic power management techniques, allowing for reduced power consumption during varied operational states.

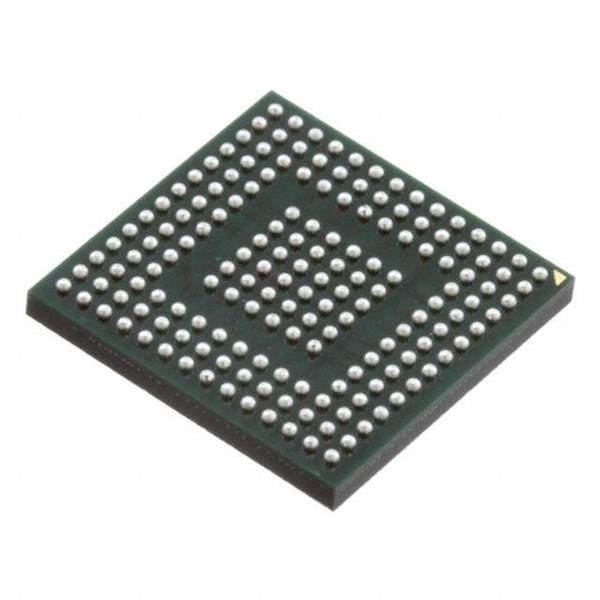

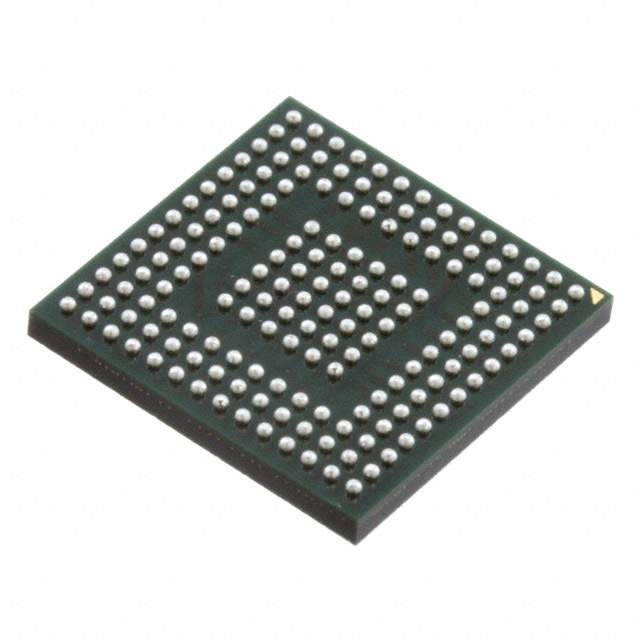

• Package: The DSP is available in a 176-lead CSPBGA (Chip Scale Package Ball Grid Array) package, which ensures a compact footprint suitable for space-constrained designs.
• Operating Temperature: It is rated for an industrial temperature range of -40°C to +85°C, making it reliable for use in harsh environmental conditions.

Applications:

The ADSP-BF512KBCZ-3 is versatile and can be deployed in various sectors. Its robust processing capabilities make it ideal for advanced audio and video equipment, automotive infotainment systems, industrial automation, and control, as well as for communication systems like VoIP devices. Its high-speed signal processing prowess also makes it suitable for medical imaging devices and portable instrumentation where quick and efficient data processing is crucial.

Overall, the ADSP-BF512KBCZ-3 from Analog Devices Inc. represents a blend of performance, integration, and efficiency, making it an excellent choice for developers looking to create sophisticated and power-conscious DSP solutions.
