Product Overview: ADF4152HVBCPZ-RL7

The ADF4152HVBCPZ-RL7 is a state-of-the-art fractional-N frequency synthesizer designed and manufactured by Analog Devices Inc., a renowned leader in high-performance analog, mixed-signal, and digital signal processing integrated circuits. This device is particularly well-suited for radio frequency (RF) applications that demand high precision and stability.

Key Features

• Frequency Range: The ADF4152HVBCPZ-RL7 operates over a broad frequency range, making it versatile for various applications, from base stations to test equipment.
• Fractional-N Synthesizer: As a fractional-N synthesizer, it allows for fine-tuning of the output frequency with a higher resolution compared to integer-N synthesizers.
• Integrated VCO: It includes an integrated voltage-controlled oscillator (VCO) with a fundamental output frequency range, reducing the need for external components.
• Programmability: The device is highly programmable via a serial interface, offering flexibility to adjust frequency, phase, and other parameters dynamically.
• Low Phase Noise: The ADF4152HVBCPZ-RL7 boasts low phase noise performance, which is critical for maintaining signal integrity in communication systems.
• Power Supply: It operates on a single 3.3V power supply, which is conducive for integration into modern low-voltage systems.

Applications

The ADF4152HVBCPZ-RL7 is ideal for a range of applications, including:

• Wireless infrastructure (GSM, LTE, WCDMA)
• Instrumentation and test equipment
• Satellite communication systems
• Private mobile radios
• Other RF communication systems

Package and Quality

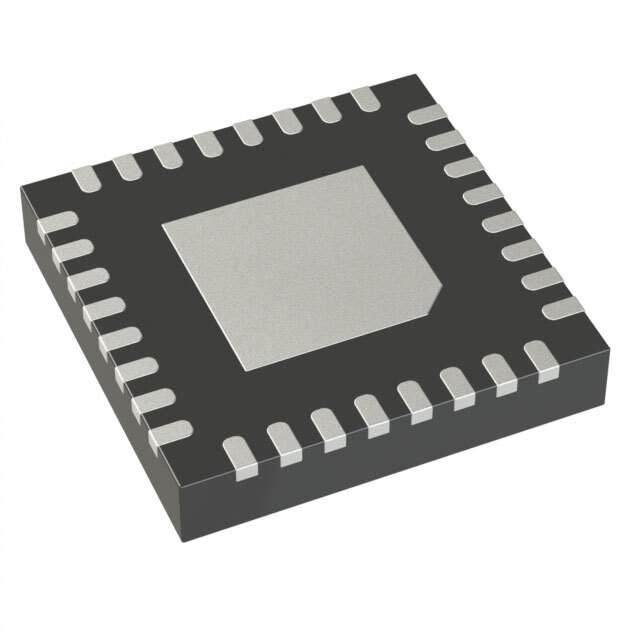

The device is offered in a compact LFCSP (Lead Frame Chip Scale Package) form factor, bearing the part number ADF4152HVBCPZ-RL7, and is available in reel packaging for ease of manufacturing integration. Analog Devices Inc. ensures high-quality standards, and the ADF4152HVBCPZ-RL7 is no exception, designed to meet stringent industry requirements and performance criteria.
