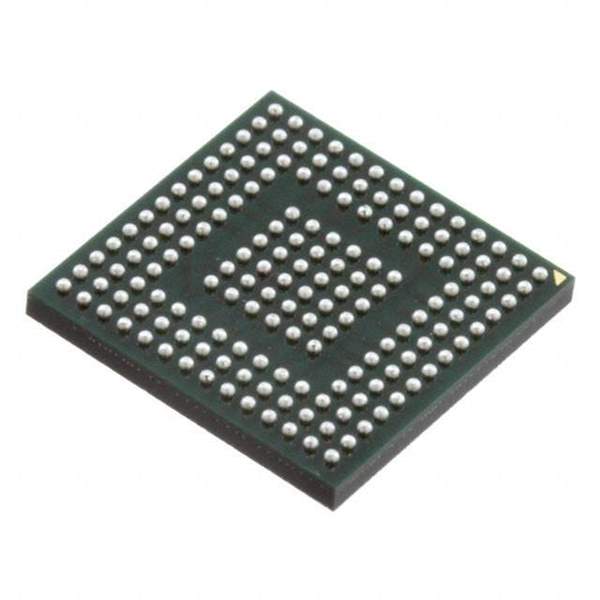

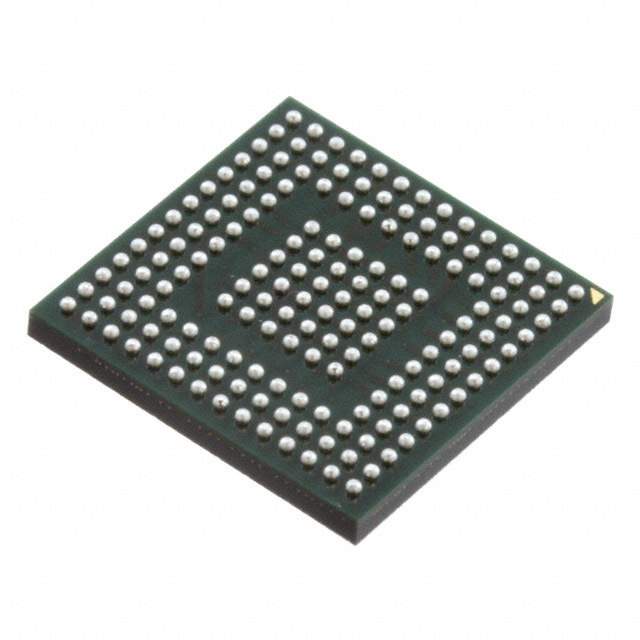

ADSP-BF514BBCZ-4: High-Performance Digital Signal Processor

The ADSP-BF514BBCZ-4 is a cutting-edge digital signal processor (DSP) from the renowned manufacturer, Analog Devices Inc. This DSP is part of the Blackfin family of products, which are known for their exceptional performance in processing digital signals for a wide array of applications.

With a core clock speed of up to 400 MHz, the ADSP-BF514BBCZ-4 delivers high computational performance while maintaining power efficiency. This makes it an ideal choice for embedded applications requiring intensive signal processing capabilities such as automotive, industrial control, and medical imaging systems.

The processor is built on a sophisticated microarchitecture that combines the features of a microcontroller (MCU) with those of a DSP, resulting in a versatile and powerful processing solution. It supports a 16-bit or 32-bit RISC-like instruction set that provides a seamless balance between high performance and code density.

Key features of the ADSP-BF514BBCZ-4 include:

• 400 MHz core clock speed for high-speed signal processing
• On-chip memory including L1 and L2 caches to minimize latency
• Integrated peripherals such as UART, SPI, CAN, and Timers for system-level integration
• Low power consumption modes for energy-sensitive applications
• Support for advanced audio and video processing
• Lockbox Secure Technology for secure code and data handling
• Parallel Peripheral Interface (PPI) for direct connection to external devices like image sensors

The ADSP-BF514BBCZ-4 also features a Programmable Flag GPIO subsystem, which provides flexible pin-multiplexing functionality to configure the processor for various custom applications. The processor's Enhanced DMA controller (EDMA) facilitates high-speed data transfers without burdening the core, thus freeing up resources for critical processing tasks.

For developers, Analog Devices Inc. offers a comprehensive suite of development tools for the ADSP-BF514BBCZ-4, including cross-compilers, debuggers, and emulators. These tools are designed to streamline the development process and enable rapid deployment of applications utilizing this advanced DSP.

Overall, the ADSP-BF514BBCZ-4 from Analog Devices Inc. is a robust and flexible DSP solution that meets the demanding needs of modern signal processing applications.
