EVAL-ADIN1300FMCZ: Robust Ethernet PHY Evaluation Board

The EVAL-ADIN1300FMCZ is a comprehensive evaluation board presented by Analog Devices Inc., designed to facilitate the testing and development of the ADIN1300 Robust, Low Power 10/100/1000 Mbps Ethernet Physical Layer (PHY) transceiver. This state-of-the-art evaluation platform is an essential tool for engineers and developers seeking to explore the features and performance of the ADIN1300 in various network environments and applications.

Key Features:

• Support for 10/100/1000 Mbps Ethernet operation, enabling versatile network connectivity for a wide range of applications.
• Robust industrial design with low power consumption, making it suitable for industrial, enterprise, and automotive markets.
• Comprehensive signal quality monitoring features, ensuring reliable communication in electrically noisy environments.
• Flexible RGMII, MII, RMII, and SGMII MAC interfaces, providing compatibility with a variety of host processors and switch chipsets.
• IEEE 1588v2 Precision Time Protocol (PTP) support for time-sensitive applications requiring precise synchronization.

Board Details:

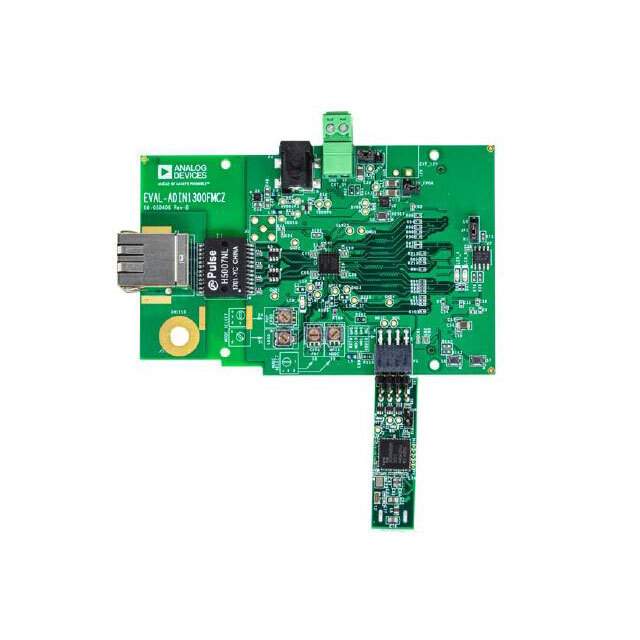

The EVAL-ADIN1300FMCZ evaluation board comes equipped with an FMC (FPGA Mezzanine Card) connector, which allows seamless integration with FPGA development platforms for advanced experimentation and prototyping. Additionally, the board includes various status LEDs, providing visual feedback on link activity, speed, and power. The board's layout is carefully designed to mimic a typical application, offering a realistic testing environment for the ADIN1300 PHY.

Applications:

• Industrial automation and process control systems
• Automotive in-vehicle networks and diagnostics
• Enterprise and data center networking equipment
• Embedded systems and IoT devices requiring Ethernet connectivity

The EVAL-ADIN1300FMCZ is an invaluable asset for developers aiming to harness the robustness and efficiency of the ADIN1300 PHY. With its extensive feature set and flexible interfacing options, this evaluation board provides a solid foundation for designing next-generation networked devices.
