Product Overview: LT8653SEV#PBF from Analog Devices Inc.

The LT8653SEV#PBF is a high-performance, dual-channel synchronous step-down Silent Switcher® 2 regulator designed by Analog Devices Inc. This advanced power solution is engineered to meet the stringent requirements of modern compact and high-efficiency applications. With its Silent Switcher 2 architecture, the LT8653SEV#PBF minimizes EMI/EMC emissions, making it ideal for noise-sensitive applications without compromising efficiency or thermal performance.

Key Features

• Dual Channel: Two independent 4A output channels that can be paralleled for up to 8A of output current.
• Wide Input Voltage Range: Operates from a 3.4V to 42V input voltage range, making it suitable for various supply sources, including automotive batteries and industrial supplies.
• High Efficiency: Integrated top and bottom power MOSFETs result in high efficiency and reduced heat generation.
• Fast Transient Response: The fast minimum on-time of just 30ns enables large step-down ratios at high switching frequencies, allowing for a quick response to load changes.
• Ultralow EMI/EMC Emissions: Utilizes Silent Switcher 2 technology with integrated bypass capacitors to optimize the switch node layout, ensuring minimal EMI and EMC emissions.
• Adjustable Switching Frequency: The switching frequency can be programmed between 300kHz and 3MHz or synchronized to an external clock.

Applications

With its robust feature set, the LT8653SEV#PBF is particularly well-suited for a wide range of applications, including:

• Automotive infotainment and navigation systems
• Industrial control and automation systems
• Telecommunications equipment
• Medical devices
• Point-of-load power supplies

Package and Reliability

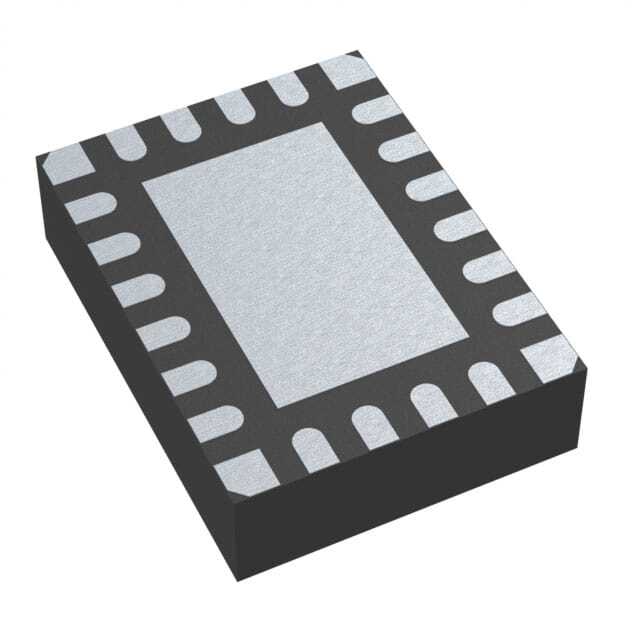

The LT8653SEV#PBF comes in a thermally enhanced 4mm x 6mm LQFN package, which is designed to maximize heat dissipation and reliability. The device is rated for operation from –40°C to +125°C, ensuring consistent performance across a wide range of environmental conditions.

In summary, the LT8653SEV#PBF from Analog Devices Inc. offers a compact, efficient, and EMI-friendly solution for dual-channel power regulation needs, making it an excellent choice for designers looking to optimize their power systems for performance and space constraints.
