Product Overview: LTC3265EDHC#TRPBF

The LTC3265EDHC#TRPBF is a versatile, high voltage, low noise dual output power supply from Analog Devices Inc. that is designed to cater to a wide range of applications requiring a compact, efficient, and reliable power solution. This integrated circuit is specifically engineered to convert a single positive input voltage into both a positive and negative output voltage, making it an ideal choice for systems that require a dual supply from a single rail.

Key Features

• Wide Input Voltage Range: The LTC3265 can operate from an input voltage range of 4.5V to 32V, which allows it to be used in various applications with different power requirements.
• Dual Output Voltages: It provides two outputs: a positive voltage up to +32V and a negative voltage down to -32V, which are both adjustable via external resistors.
• Low Noise Operation: The device includes a low noise charge pump with a capacitor multiplier technology that significantly reduces the output noise, making it suitable for noise-sensitive applications such as precision instrumentation and data acquisition systems.
• Integrated Boost and Inverting Converters: The LTC3265 features an integrated boost converter followed by an inverting charge pump, facilitating a simple and efficient design.
• Overcurrent Protection: It offers robust protection features including overcurrent protection, which helps to safeguard the device and the system it powers.

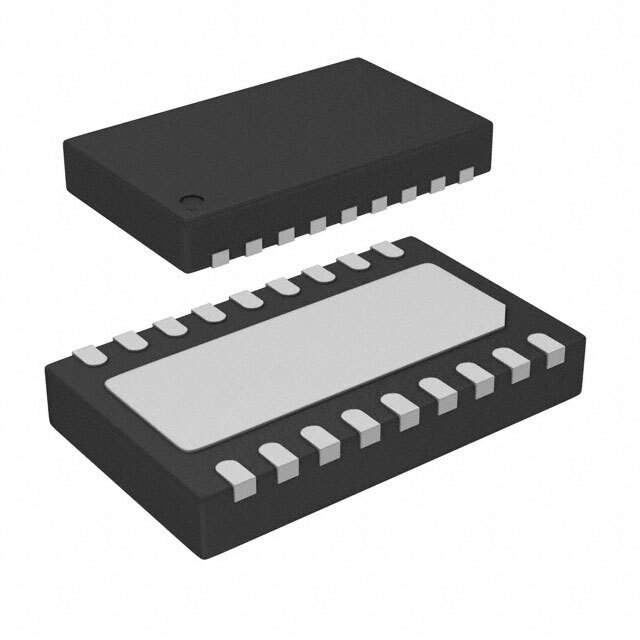

• Compact Package: The LTC3265EDHC#TRPBF comes in a 16-lead DFN package, which is ideal for space-constrained applications.

Applications

This power supply is highly suitable for a variety of applications, including but not limited to:

• Industrial Control Systems
• Automotive Power Supplies
• Telecommunications Infrastructure
• Portable and Battery-Powered Equipment
• Medical Devices
• Operational Amplifier Power Supplies

With its dual output capability, low noise performance, and a wide input voltage range, the LTC3265EDHC#TRPBF from Analog Devices Inc. is a flexible and reliable choice for designers looking to enhance the performance and efficiency of their power supply systems.
